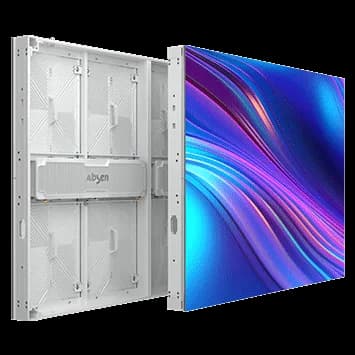

Absen A1025 HBR specs
The A25 Series consumes <1 KWH/SQM per day, has long-lasting stability, extends up to 10 years, 0 down payment, promoting green outdoor advertising.
Physical
- Pixel pitch
- 10 mm
- Cabinet size (W×H×D)
- 1,280 × 960 × 82 mm
- Weight
- 35 kg
- Weight per m²
- 28.5 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 128 × 96 px (4:3)
- Pixel density
- 10,000 px/m²
- Brightness (calibrated)
- 10,000 nits
- Refresh rate
- 15,000 Hz
- Contrast
- 17,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 580 W
- Average power
- 145 W
- Max power per m²
- 472 W/m²
- Average power per m²
- 118 W/m²
- Thermal load
- 1,979 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -30 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CCC, CE, ETL, FCC
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Aluminum
- Short description
- • Long-lasting Stability, extend up to 10 years • 10-second module swap • Consistently outstanding display, undisturbed by environment. • 110% NTSC
- Operating humidity
- 10 to 90%
- Pixel configuration
- SMD 2727
All variations in the A25 Series
All Absen cabinets →Every Absen A25 Series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen A04254.44 mm1280×960 mm7,500 nits
- Absen A06256.66 mm1280×960 mm7,500 nits
- Absen A0625 HBR6.66 mm1280×960 mm10,000 nits
- Absen A08258 mm1280×960 mm7,500 nits
- Absen A0825 HBR8 mm1280×960 mm10,000 nits
- Absen A102510 mm1280×960 mm7,500 nits
- A1025 HBRthis model10 mm1280×960 mm10,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 12,288 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
20,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
20,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
11,474cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
10,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
5,200cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
5,200cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen A1025 HBR in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen A1025 HBR draw?
- Each Absen A1025 HBR cabinet draws up to 580 W at full white and about 145 W with typical content — 472 W/m² max. A 10-cabinet wall therefore needs up to 5,800 W plus headroom.
- What is the resolution of the Absen A1025 HBR?
- One cabinet is 128 × 96 pixels at a 10 mm pixel pitch (10,000 px/m²). About 30 cabinets side by side reach 4K width (≈ 38.40 m).
- How heavy is a Absen A1025 HBR wall?
- A single cabinet weighs 35 kg (28.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 525 kg before mounting structure.
- Is the Absen A1025 HBR suitable for outdoor use?
- Yes — it is rated for outdoor use with IP66 front ingress protection and 10,000 nits of calibrated brightness.
