8.92857 mm pitchIndoorSMD

ROE Visual V8S MKII (White LED) specs

Transparent LED in a large panel design. The Vanish LED panel is a large frame, indoor transparent LED panel. With a transparency from 35% to 62%, this LED panel offers outstanding performance in indoor environments through its high brightness and excellent viewing angles.

Pitch
5.68182 mm8.92857 mm
Size
1000×1000 mm
Nits
2,000 nits3,500 nits
Open in calculatorCompareControllersRunning cost

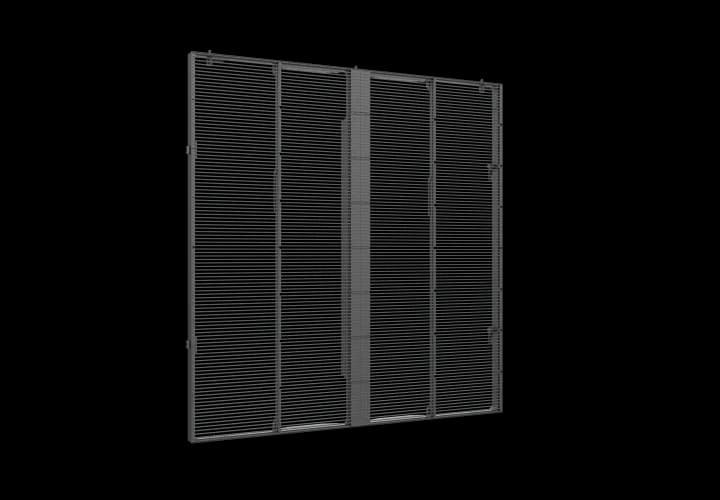

ROE Visual V8S MKII (White LED) LED cabinet

Physical

Pixel pitch
8.92857 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 67 mm
Weight
9.6 kg
Weight per m²
9.6 kg/m²
Cabinet type
Rental & staging
Service access
Front


Cabinet resolution
112 × 112 px (1:1)
Pixel density
12,544 px/m²
Brightness (calibrated)
3,500 nits
Refresh rate
3,840 Hz
Viewing angle (H/V)
160° / 140°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
460 W
Average power
230 W
Max power per m²
460 W/m²
Average power per m²
230 W/m²
Thermal load
1,570 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP40
Operating temperature
-20 to 45 °C
Certifications
CE, ETL, FCC, SAA

Manufacturer details

Usage
transparent
Scan rate
1/4
Curve range
Concave 10° ~ Convex 10°
Brochure url
https://www.roevisual.com/uploads/files/Product%20File/Vanish/vanish-mkii-brochure-june-17-2024.pdf
Storage temp
-40°C ~ 60°C, 10% ~ 90% RH
Transparency
62%
Btu published
1570 / 720
Pitch published
8.9mm
Power published
460W / 230W
Weight published
9.6kg / 21.16lbs
Operating humidity
10% ~ 90% RH
Pixel configuration
SMD 1515 White
Brightness published
3500nits
Dimensions published
1000mm x 1000mm x 67mm 39.4” x 39.4” x 2.6”
Service access published
Front

All variations in the Vanish series

All ROE Visual cabinets →

Every ROE Visual Vanish series cabinet and the exact pitch, size and brightness pairing it ships with.

  • ROE Visual V5S MKII5.68182 mm1000×1000 mm2,000 nits
  • V8S MKII (White LED)this model8.92857 mm1000×1000 mm3,500 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 12,544 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual V8S MKII (White LED) in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the ROE Visual V8S MKII (White LED) draw?
Each ROE Visual V8S MKII (White LED) cabinet draws up to 460 W at full white and about 230 W with typical content — 460 W/m² max. A 10-cabinet wall therefore needs up to 4,600 W plus headroom.
What is the resolution of the ROE Visual V8S MKII (White LED)?
One cabinet is 112 × 112 pixels at a 8.92857 mm pixel pitch (12,544 px/m²). About 34 cabinets side by side reach 4K width (≈ 34.00 m).
How heavy is a ROE Visual V8S MKII (White LED) wall?
A single cabinet weighs 9.6 kg (9.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 144 kg before mounting structure.
Is the ROE Visual V8S MKII (White LED) suitable for outdoor use?
No — the ROE Visual V8S MKII (White LED) is an indoor cabinet (IP40 front). Its 3,500 nits suit controlled lighting, not direct sun.
