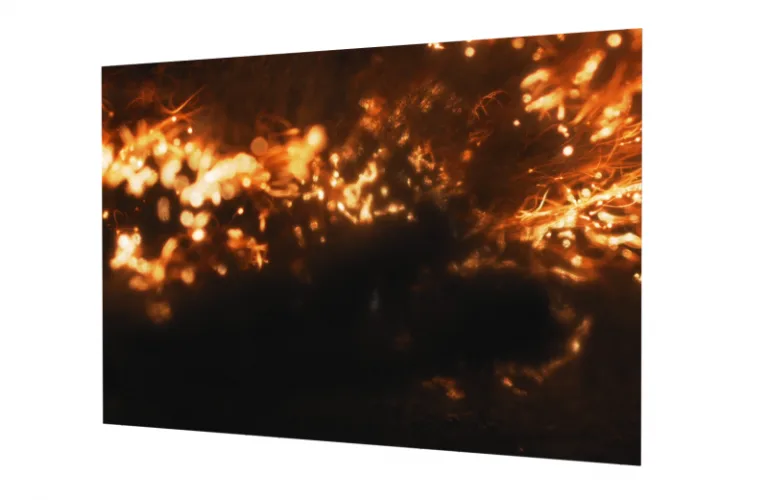

ROE Visual DM3.9 specs
A Lightweight Small-Pitch Alternative
Physical
- Pixel pitch
- 3.90625 mm
- Cabinet size (W×H×D)
- 500 × 500 × 80 mm
- Weight
- 5.8 kg
- Weight per m²
- 23 kg/m²
- Cabinet type
- Rental & staging
- Cabinet resolution
- 128 × 128 px (1:1)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 1,500 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 150 W
- Average power
- 80 W
- Max power per m²
- 600 W/m²
- Average power per m²
- 320 W/m²
- Thermal load
- 512 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP40
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, TÜV
Manufacturer details
- Scan rate
- 1/16
- Curve range
- Concave 10° ~ Convex 5°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Diamond/diamond-brochure-jun.-30-2023.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 510 / 240
- Pitch published
- 3.906mm
- Power published
- 150W / 80W
- Weight published
- 5.76kg / 12.7lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 2020
- Brightness published
- 1500nits
- Dimensions published
- 500mm x 500mm x 80mm 19.7” x 19.7” x 3.2”
All variations in the Diamond series
All ROE Visual cabinets →Every ROE Visual Diamond series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual DM2.62.60417 mm500×500 mm1,500 nits
- DM3.9this model3.90625 mm500×500 mm1,500 nits
Controllers that drive this panel
All controllers →Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
15,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
15,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
8,605cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
7,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual DM3.9 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual DM3.9 draw?
- Each ROE Visual DM3.9 cabinet draws up to 150 W at full white and about 80 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
- What is the resolution of the ROE Visual DM3.9?
- One cabinet is 128 × 128 pixels at a 3.90625 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a ROE Visual DM3.9 wall?
- A single cabinet weighs 5.8 kg (23 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 86 kg before mounting structure.
- Is the ROE Visual DM3.9 suitable for outdoor use?
- No — the ROE Visual DM3.9 is an indoor cabinet (IP40 front). Its 1,500 nits suit controlled lighting, not direct sun.
