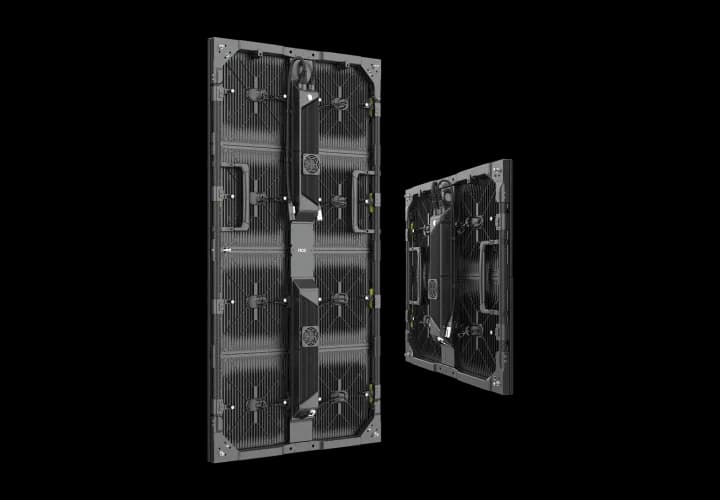

ROE Visual CB3MKII Half specs
Any better solution for outdoor rental stage? CB MarkII LED platform is the answer. CB MarkII LED platform offers 12% weight reduction compared to CB series and designed on a stronger structure.
Physical
- Pixel pitch
- 3.75 mm
- Cabinet size (W×H×D)
- 600 × 600 × 79 mm
- Weight
- 7.8 kg
- Weight per m²
- 21.7 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front & rear
- Cabinet resolution
- 160 × 160 px (1:1)
- Pixel density
- 71,111 px/m²
- Brightness (calibrated)
- 4,500 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 140° / 110°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 290 W
- Average power
- 145 W
- Max power per m²
- 806 W/m²
- Average power per m²
- 403 W/m²
- Thermal load
- 989 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, UKCA, SAA
Manufacturer details
- Scan rate
- 1/10
- Curve range
- Concave 15° ~ Convex 10°
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/CB%20MK%E2%85%A1/cb-mkll-brochure-dec-1-2023.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 990 / 455
- Cabinet variant
- Half
- Power published
- 290W / 145W
- Weight published
- 7.8kg / 17.2lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1515 Black
- Brightness published
- 4500nits
- Dimensions published
- 600mm x 600mm x 79mm 23.6” x 23.6” x 3.1”
- Service access published
- Front / Rear
All variations in the Carbon MarkII series
All ROE Visual cabinets →Every ROE Visual Carbon MarkII series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual CB3MKII3.75 mm600×1200 mm4,500 nits
- CB3MKII Halfthis model3.75 mm600×600 mm4,500 nits
- ROE Visual CB5MKII5.76923 mm600×1200 mm6,000 nits
- ROE Visual CB5MKII Half5.76923 mm600×600 mm6,000 nits
- ROE Visual CB8MKII8.33333 mm600×1200 mm6,000 nits
- ROE Visual CB8MKII Half8.33333 mm600×600 mm6,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 25,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
10,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
10,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
5,507cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
5,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
2,500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
2,500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual CB3MKII Half in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual CB3MKII Half draw?
- Each ROE Visual CB3MKII Half cabinet draws up to 290 W at full white and about 145 W with typical content — 806 W/m² max. A 10-cabinet wall therefore needs up to 2,900 W plus headroom.
- What is the resolution of the ROE Visual CB3MKII Half?
- One cabinet is 160 × 160 pixels at a 3.75 mm pixel pitch (71,111 px/m²). About 24 cabinets side by side reach 4K width (≈ 14.40 m).
- How heavy is a ROE Visual CB3MKII Half wall?
- A single cabinet weighs 7.8 kg (21.7 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 117 kg before mounting structure.
- Is the ROE Visual CB3MKII Half suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,500 nits of calibrated brightness.
