ROE Visual BM5-PC-Matte specs
ROE Visual's Red Dot award-winning Black Marble LED floor panel brings creativity to your feet. Available with a high-contrast glass or matte or mirror finish, these floor panels are suited for a wide range of creative uses, such as broadcast, live music, corporate events, xR Stages and a variety of other applications.
Physical
- Pixel pitch
- 5.76923 mm

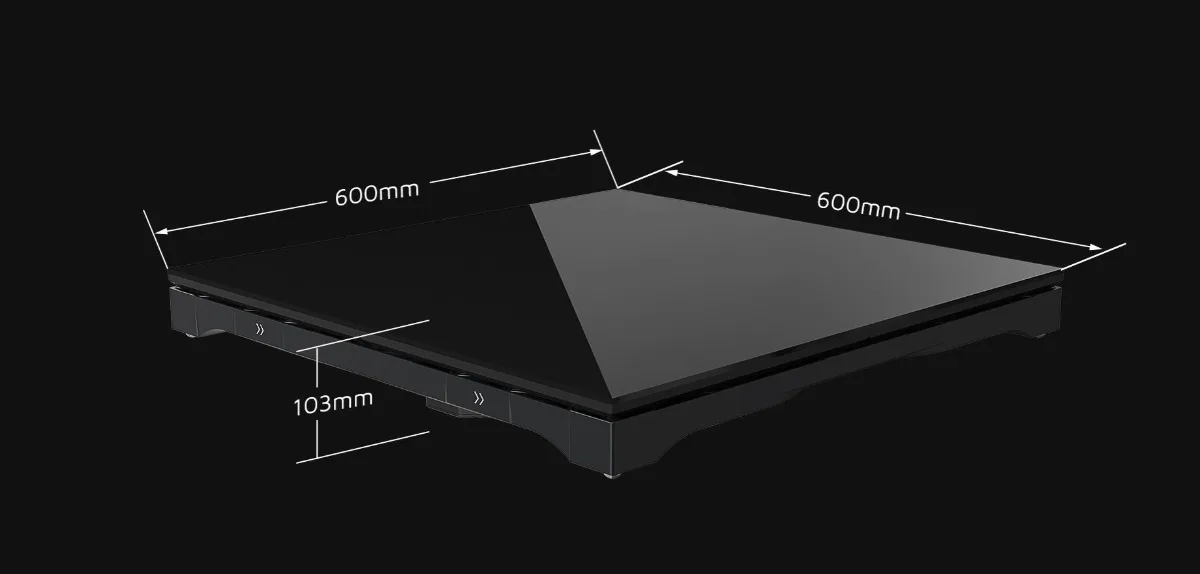

- Cabinet size (W×H×D)
- 600 × 600 × 103 mm
- Weight
- 13.5 kg
- Weight per m²
- 37.5 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front
- Cabinet resolution
- 104 × 104 px (1:1)
- Pixel density
- 30,044 px/m²
- Brightness (calibrated)
- 2,000 nits
- Refresh rate
- 3,840 Hz
- Viewing angle (H/V)
- 140° / —°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 270 W
- Average power
- 135 W
- Max power per m²
- 750 W/m²
- Average power per m²
- 375 W/m²
- Thermal load
- 921 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 45 °C
- Certifications
- CE, ETL, FCC, WEEE
Manufacturer details
- Usage
- LED floor
- Scan rate
- 1/4
- Brochure url
- https://www.roevisual.com/uploads/files/Product%20File/Black%20Marble%202%20%26%204/bm4-brochure-en-july.-22-2024.pdf
- Storage temp
- -40°C ~ 60°C, 10% ~ 90% RH
- Btu published
- 920 / 420
- Pitch published
- 5.7692mm
- Power published
- 270W / 135W
- Weight published
- 13.5kg / 29.76lbs
- Operating humidity
- 10% ~ 90% RH
- Pixel configuration
- SMD 1921 White
- Brightness published
- 2000nits
- Dimensions published
- 600mm x 600mm x 103mm 23.6” x 23.6” x 4.1”
- Service access published
- Front
All variations in the Black Marble BM5 series
All ROE Visual cabinets →Every ROE Visual Black Marble BM5 series cabinet and the exact pitch, size and brightness pairing it ships with.
- ROE Visual BM5-Glass5.76923 mm600×600 mm800 nits
- BM5-PC-Mattethis model5.76923 mm600×600 mm2,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 10,816 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
24,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
24,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
13,036cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
12,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open ROE Visual BM5-PC-Matte in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the ROE Visual BM5-PC-Matte draw?
- Each ROE Visual BM5-PC-Matte cabinet draws up to 270 W at full white and about 135 W with typical content — 750 W/m² max. A 10-cabinet wall therefore needs up to 2,700 W plus headroom.
- What is the resolution of the ROE Visual BM5-PC-Matte?
- One cabinet is 104 × 104 pixels at a 5.76923 mm pixel pitch (30,044 px/m²). About 37 cabinets side by side reach 4K width (≈ 22.20 m).
- How heavy is a ROE Visual BM5-PC-Matte wall?
- A single cabinet weighs 13.5 kg (37.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 203 kg before mounting structure.
- Is the ROE Visual BM5-PC-Matte suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 2,000 nits of calibrated brightness.
