INFiLED ORMV6.9mk2 specs

The next generation of outdoor commercial LED display — engineered for DOOH networks and landmark installations that demand maximum brightness at minimum operational cost.

Pitch
3.91 mm6.94 mm10.41 mm
Size
1000×1000 mm
Nits
7,000 nits10,000 nits
Open in calculatorCompareControllersRunning costDatasheet

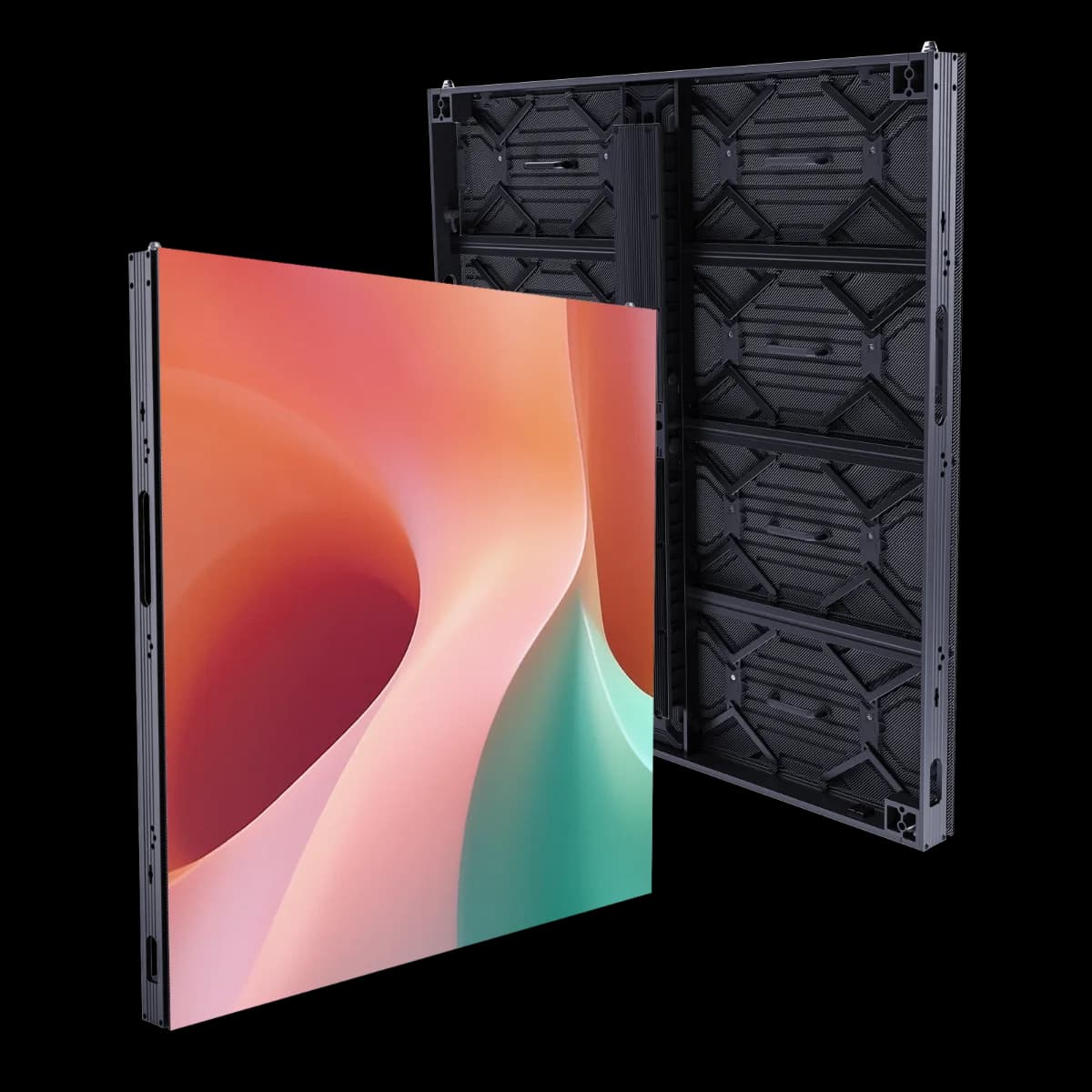

INFiLED ORMV6.9mk2 LED cabinet

Physical

Pixel pitch
6.94 mm
Cabinet size (W×H×D)
1,000 × 1,000 × 93 mm
Weight
27 kg
Weight per m²
27 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
144 × 144 px (1:1)
Pixel density
20,736 px/m²
Brightness (calibrated)
7,000 nits
Refresh rate
7,680 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 120°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
660 W
Average power
220 W
Max power per m²
660 W/m²
Average power per m²
220 W/m²
Thermal load
2,252 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, FCC, ETL, RoHS, REACH, WEEE

Manufacturer details

Driver ic
PWM Driver Chip
Scan rate
1/6
Brochure url
https://www.infiled.com/wp-content/uploads/2024/05/aaff_brochure_infiled_mvmk2_2025.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Fixed Installation
Display colors
281T
Frame rates hz
50/60Hz
Led wavelength
R:615-630nm/G:520-535nm/B:465-485nm
Receiving card
Novastar
Pitch published
6,94mm
Power published
660 / 220 W/panel (max / avg)
Cabinet material
Aluminum Alloy
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
20.736pixels/㎡
Weight published
27kg (59,52lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
500x250mm
Module resolution
72x36pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
16bit
Pixel configuration
3-in-1 SMD
Brightness published
7000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear (select one)

All variations in the MVmk2 series

All INFiLED cabinets →

Every INFiLED MVmk2 series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 20,736 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORMV6.9mk2 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORMV6.9mk2 draw?
Each INFiLED ORMV6.9mk2 cabinet draws up to 660 W at full white and about 220 W with typical content — 660 W/m² max. A 10-cabinet wall therefore needs up to 6,600 W plus headroom.
What is the resolution of the INFiLED ORMV6.9mk2?
One cabinet is 144 × 144 pixels at a 6.94 mm pixel pitch (20,736 px/m²). About 27 cabinets side by side reach 4K width (≈ 27.00 m).
How heavy is a INFiLED ORMV6.9mk2 wall?
A single cabinet weighs 27 kg (27 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 405 kg before mounting structure.
Is the INFiLED ORMV6.9mk2 suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 7,000 nits of calibrated brightness.
