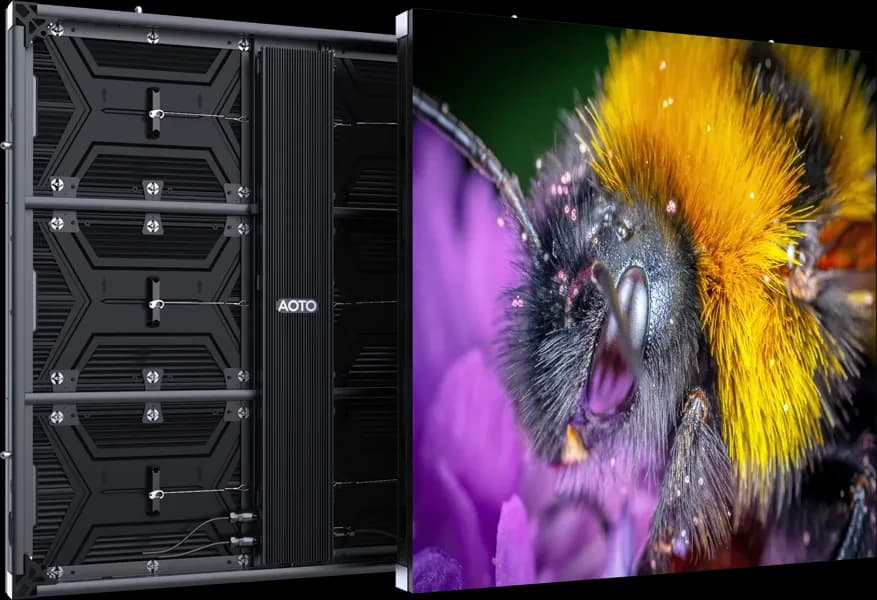

AOTO AF6 Premium specs
AF series is a brand-new LED product for outdoor use, it features 8000nits of customized brightness, IP65 high protection, excellent fin shaped heat dissipation structure, and 30% of energy saving. More importantly, it has three different sizes of modules and a semi-circular cabinet for more flexible and smoother creative display.
Physical
- Pixel pitch
- 6.66667 mm
- Cabinet size (W×H×D)
- 960 × 960 × 87 mm
- Weight
- 24.5 kg
- Weight per m²
- 26.6 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 144 × 144 px (1:1)
- Pixel density
- 22,500 px/m²
- Brightness (calibrated)
- 8,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 140° / 100°
- LED type
- SMD
Power & thermal
- Max power
- 570 W
- Average power
- 170 W
- Max power per m²
- 618 W/m²
- Average power per m²
- 184 W/m²
- Thermal load
- 1,945 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 50 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Power supply
- AC100-240V 50/60Hz
- Site category
- Fixed Installation
- Pitch published
- 6.67
- Cabinet material
- profile aluminium, black
- Weight published
- ≤24.5 kg
- Brightness variant
- Premium
- Operating humidity
- 10-90% RH
- Pixel configuration
- SMD 1R1G1B
All variations in the AF series
All AOTO cabinets →Every AOTO AF series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO AF66.66667 mm960×960 mm5,500 nits
- AF6 Premiumthis model6.66667 mm960×960 mm8,000 nits
- AOTO AF88 mm960×960 mm5,500 nits
- AOTO AF8 Premium8 mm960×960 mm8,000 nits
- AOTO AF1010 mm960×960 mm5,500 nits
- AOTO AF10 Premium10 mm960×960 mm8,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 20,736 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
12,400cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
12,400cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
6,799cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
6,200cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,100cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,100cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO AF6 Premium in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO AF6 Premium draw?
- Each AOTO AF6 Premium cabinet draws up to 570 W at full white and about 170 W with typical content — 618 W/m² max. A 10-cabinet wall therefore needs up to 5,700 W plus headroom.
- What is the resolution of the AOTO AF6 Premium?
- One cabinet is 144 × 144 pixels at a 6.66667 mm pixel pitch (22,500 px/m²). About 27 cabinets side by side reach 4K width (≈ 25.92 m).
- How heavy is a AOTO AF6 Premium wall?
- A single cabinet weighs 24.5 kg (26.6 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 368 kg before mounting structure.
- Is the AOTO AF6 Premium suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 8,000 nits of calibrated brightness.
Size a wall with the AF6 Premium
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
