INFiLED OREZ2.6 Pro specs

OREZ is an energy-efficient small-pitch high-contrast outdoor LED display. The OREZ is environmentally friendly with a maximum power consumption of only 210W per panel, using one-third less power compared with most outdoor display products.

Pitch
2.6 mm
Size
500×500 mm
Nits
5,000 nits4,500 nits4,000 nits
Open in calculatorCompareControllersRunning costDatasheet

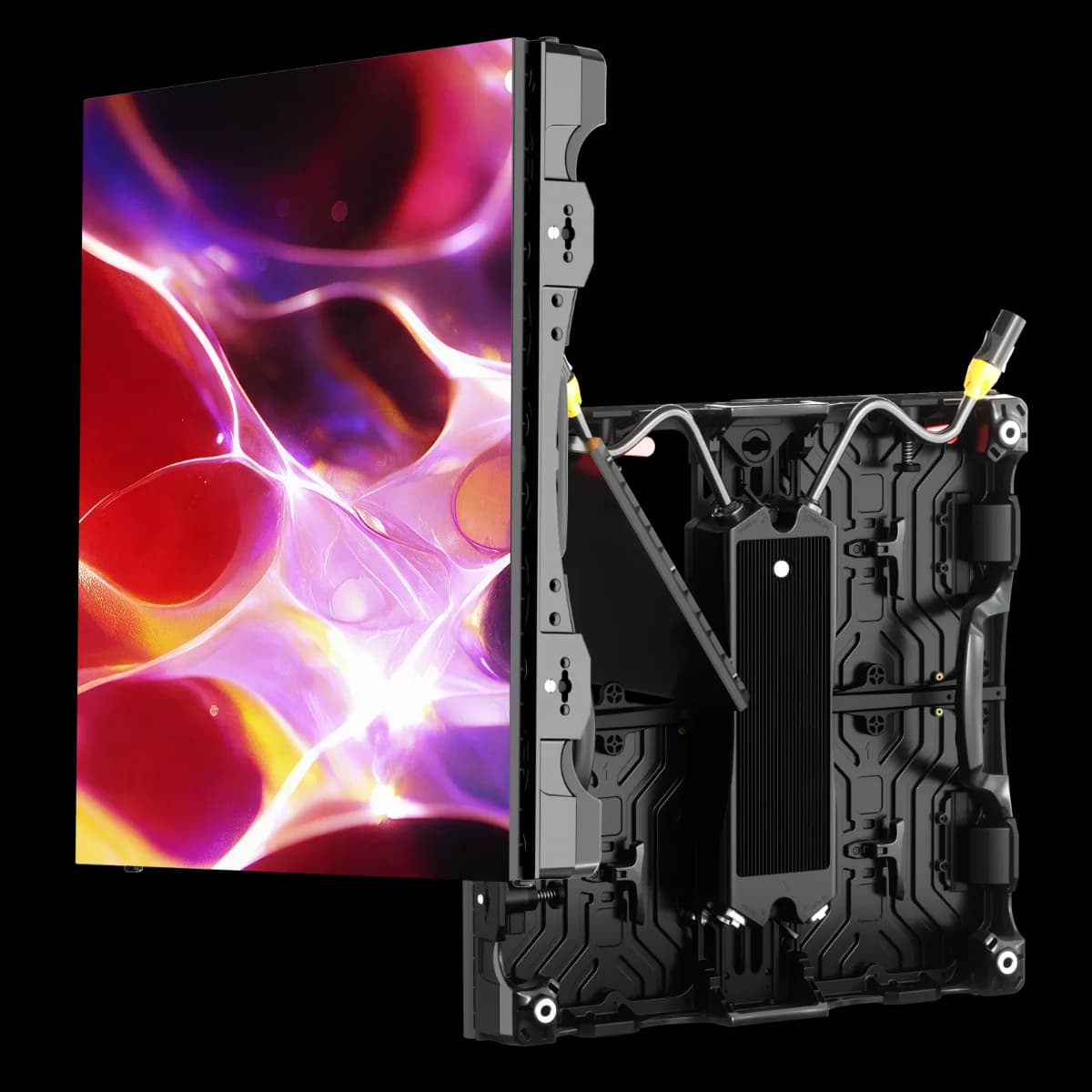

INFiLED OREZ2.6 Pro LED cabinet

Physical

Pixel pitch
2.6 mm
Cabinet size (W×H×D)
500 × 500 × 82 mm
Weight
7.6 kg
Weight per m²
30.4 kg/m²
Cabinet type
Rental & staging
Service access
Front & rear


Cabinet resolution
192 × 192 px (1:1)
Pixel density
147,456 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
3,840 Hz
Contrast
10,000:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
15 bit

Power & thermal

Max power
180 W
Average power
60 W
Max power per m²
720 W/m²
Average power per m²
240 W/m²
Thermal load
614 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, CB, FCC, CCC, RoHS

Manufacturer details

Driver ic
PWM Driver Chip
Scan rate
1/16
Brochure url
https://www.infiled.com/wp-content/uploads/2024/03/orez2-6-digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Rental Staging
Display colors
32.7T
Frame rates hz
50-60Hz
Led wavelength
R:615-630nm/G:515-535nm/B:465-480nm
Receiving card
Novastar
Pitch published
2,6mm
Power published
180 / 60 W/panel (max / avg)
Cabinet material
Die-casting Magnesium
Control distance
Ethernetcable≤ 100m or Fiber Optic≤ 15km
Physical density
147.456pixels/㎡
Weight published
7,6kg (16,76lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
250x250mm
Module resolution
96x96pixels
Contrast published
10000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
15bit
Pixel configuration
3-in-1 SMD
Brightness published
5000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front/Rear

All variations in the OREZ series

All INFiLED cabinets →

Every INFiLED OREZ series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 36,864 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED OREZ2.6 Pro in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED OREZ2.6 Pro draw?
Each INFiLED OREZ2.6 Pro cabinet draws up to 180 W at full white and about 60 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 1,800 W plus headroom.
What is the resolution of the INFiLED OREZ2.6 Pro?
One cabinet is 192 × 192 pixels at a 2.6 mm pixel pitch (147,456 px/m²). About 20 cabinets side by side reach 4K width (≈ 10.00 m).
How heavy is a INFiLED OREZ2.6 Pro wall?
A single cabinet weighs 7.6 kg (30.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 114 kg before mounting structure.
Is the INFiLED OREZ2.6 Pro suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
