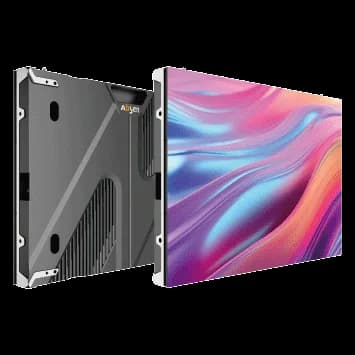

Absen XL1.8 specs
The XL series, designed for all commercial display applications, is available in 1.53mm and 1.86mm pixel pitches, effectively addressing user demands with remarkable adaptability.
Physical
- Pixel pitch
- 1.86 mm
- Cabinet size (W×H×D)
- 640 × 480 × 60 mm
- Weight
- 7.5 kg
- Weight per m²
- 24.4 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 344 × 258 px (4:3)
- Pixel density
- 288,906 px/m²
- Brightness (calibrated)
- 600 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 10,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- COB
- Processing depth
- 15 bit
Power & thermal
- Max power
- 96 W
- Average power
- 32 W
- Max power per m²
- 313 W/m²
- Average power per m²
- 104 W/m²
- Thermal load
- 328 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP40
- IP rating (rear)
- IP21
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CCC, CE, FCC, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Energy-Saving Technology • 360° Protection • Multi-Installation
- Operating humidity
- 10 to 90%
- Pixel configuration
- Flip Chip RGB
All variations in the XL Series
All Absen cabinets →Every Absen XL Series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen XL1.51.54 mm640×480 mm600 nits
- XL1.8this model1.86 mm640×480 mm600 nits
Controllers that drive this panel
All controllers →Each cabinet carries 88,752 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
2,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
2,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
1,588cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
1,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen XL1.8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen XL1.8 draw?
- Each Absen XL1.8 cabinet draws up to 96 W at full white and about 32 W with typical content — 313 W/m² max. A 10-cabinet wall therefore needs up to 960 W plus headroom.
- What is the resolution of the Absen XL1.8?
- One cabinet is 344 × 258 pixels at a 1.86 mm pixel pitch (288,906 px/m²). About 11 cabinets side by side reach 4K width (≈ 7.04 m).
- How heavy is a Absen XL1.8 wall?
- A single cabinet weighs 7.5 kg (24.4 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 113 kg before mounting structure.
- Is the Absen XL1.8 suitable for outdoor use?
- No — the Absen XL1.8 is an indoor cabinet (IP40 front). Its 600 nits suit controlled lighting, not direct sun.
