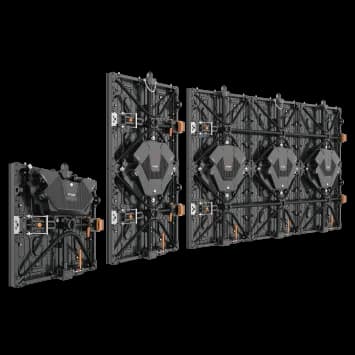

Absen VN3.9 Pro L specs
VN series is a platform specially designed for touring stages, which won the Red Dot Award. It provides customers with a complete wind-load resistance LED solution.
Physical
- Pixel pitch
- 3.9 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 113 mm
- Weight
- 17 kg
- Weight per m²
- 34 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 128 × 256 px (1:2)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 4,500 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 8,900:1
- Viewing angle (H/V)
- 160° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 380 W
- Average power
- 127 W
- Max power per m²
- 760 W/m²
- Average power per m²
- 254 W/m²
- Thermal load
- 1,297 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP54
- Operating temperature
- 20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Carbon fiber + Die-casting aluminum
- Short description
- • Panel dimension of VN3.9 Pro and VN4.8 Pro: 500(W)500(H)mm, 500(W)1000(H)mm, 1500(W)1000(H)mm • Panel dimension of VN8.3: 500(W)1000(H)mm, 1500(W)1000(H)mm
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- Black SMD 3in1 1921
All variations in the Venus series
All Absen cabinets →Every Absen Venus series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen VN3.9 Pro3.9 mm500×500 mm4,500 nits
- VN3.9 Pro Lthis model3.9 mm500×1000 mm4,500 nits
- Absen VN3.9 Pro XL L3.91 mm1500×1000 mm4,500 nits
- Absen VN4.8 Pro4.8 mm500×500 mm4,500 nits
- Absen VN4.8 Pro L4.8 mm500×1000 mm4,500 nits
- Absen VN4.8 Pro XL L4.81 mm1500×1000 mm4,500 nits
- Absen VN8.3 L8.33 mm500×1000 mm5,000 nits
- Absen VN8.3 XL L8.33 mm1500×1000 mm5,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen VN3.9 Pro L in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen VN3.9 Pro L draw?
- Each Absen VN3.9 Pro L cabinet draws up to 380 W at full white and about 127 W with typical content — 760 W/m² max. A 10-cabinet wall therefore needs up to 3,800 W plus headroom.
- What is the resolution of the Absen VN3.9 Pro L?
- One cabinet is 128 × 256 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Absen VN3.9 Pro L wall?
- A single cabinet weighs 17 kg (34 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 255 kg before mounting structure.
- Is the Absen VN3.9 Pro L suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 4,500 nits of calibrated brightness.
