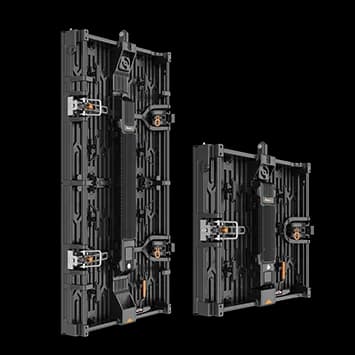

Absen PL3.9 Pro V3 2H specs
Durable & Versatile: One Screen for Corporate Events, Festivals, and Touring. The PL V3 series delivers unmatched durability and versatility, engineered to dominate any season—from summer festivals to winter corporate events.
Physical
- Pixel pitch
- 3.906 mm
- Cabinet size (W×H×D)
- 500 × 1,000 × 88 mm
- Weight
- 11.5 kg
- Weight per m²
- 23 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Rear
- Cabinet resolution
- 128 × 256 px (1:2)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 5,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 7,500:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 360 W
- Average power
- 120 W
- Max power per m²
- 720 W/m²
- Average power per m²
- 240 W/m²
- Thermal load
- 1,228 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS, UKCA
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die Cast Aluminum
- Short description
- • Unibody Dual-Layer Cabinet • Triple-Guard Modules & Automatic Edge Protection • Outdoor - Bright Displays • Indoor - Clear Image Performance • Engineered for Speed & Safety • Tool-Free Maintenance of Modules & Power Box • Integrated Wind-Bracing System & Triangle Hanging Bar • Fast-Hanging Touring LED Solution • Flight Cases Available
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- 3 in 1 Black SMD
All variations in the Absen Polaris V3 series
All Absen cabinets →Every Absen Absen Polaris V3 series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen PL3.9 Pro V33.906 mm500×500 mm5,000 nits
- PL3.9 Pro V3 2Hthis model3.906 mm500×1000 mm5,000 nits
- Absen PL3.9 Pro V3 L3.91 mm500×1000 mm5,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
7,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
4,302cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen PL3.9 Pro V3 2H in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen PL3.9 Pro V3 2H draw?
- Each Absen PL3.9 Pro V3 2H cabinet draws up to 360 W at full white and about 120 W with typical content — 720 W/m² max. A 10-cabinet wall therefore needs up to 3,600 W plus headroom.
- What is the resolution of the Absen PL3.9 Pro V3 2H?
- One cabinet is 128 × 256 pixels at a 3.906 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Absen PL3.9 Pro V3 2H wall?
- A single cabinet weighs 11.5 kg (23 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 173 kg before mounting structure.
- Is the Absen PL3.9 Pro V3 2H suitable for outdoor use?
- No — the Absen PL3.9 Pro V3 2H is an indoor cabinet (IP65 front). Its 5,000 nits suit controlled lighting, not direct sun.
