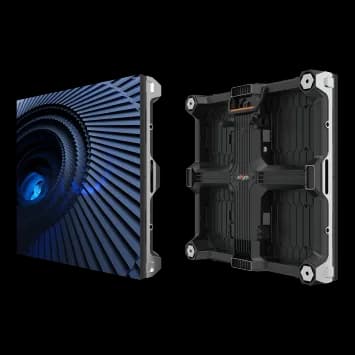

Absen MR4.8 Matte i specs
The MR series innovatively adopts an integrated design to create a thin and light floor display with high load-bearing capacity, especially suitable for professional stages.
Physical
- Pixel pitch
- 4.8 mm
- Cabinet size (W×H×D)
- 500 × 500 × 85 mm
- Weight
- 12 kg
- Weight per m²
- 48 kg/m²
- Cabinet type
- Rental & staging
- Service access
- Front
- Cabinet resolution
- 104 × 104 px (1:1)
- Pixel density
- 43,264 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 6,000:1
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 14 bit
Power & thermal
- Max power
- 160 W
- Average power
- 54 W
- Max power per m²
- 640 W/m²
- Average power per m²
- 216 W/m²
- Thermal load
- 546 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (rear)
- IP54
- Operating temperature
- 20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC, RoHS
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • 0~20mm height adjustable • 10%~38% thinner than conventional panel (compared to other products with 130mm thickness) • Ultra-high load capacity • Water resistance surface • Front installation • Full front maintenance
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- SMD 3in1 1921
All variations in the Mars series
All Absen cabinets →Every Absen Mars series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen MR2.52.5 mm500×500 mm1,000 nits
- Absen MR4.8 Anchor-Free Matte4.8 mm500×500 mm1,500 nits
- Absen MR4.8 Glassy4.8 mm500×500 mm1,000 nits
- Absen MR4.8 Interactive Matte4.8 mm500×500 mm1,000 nits
- Absen MR4.8 Matte4.8 mm500×500 mm1,500 nits
- MR4.8 Matte ithis model4.8 mm500×500 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 10,816 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
24,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
24,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
13,036cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
12,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
6,000cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen MR4.8 Matte i in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen MR4.8 Matte i draw?
- Each Absen MR4.8 Matte i cabinet draws up to 160 W at full white and about 54 W with typical content — 640 W/m² max. A 10-cabinet wall therefore needs up to 1,600 W plus headroom.
- What is the resolution of the Absen MR4.8 Matte i?
- One cabinet is 104 × 104 pixels at a 4.8 mm pixel pitch (43,264 px/m²). About 37 cabinets side by side reach 4K width (≈ 18.50 m).
- How heavy is a Absen MR4.8 Matte i wall?
- A single cabinet weighs 12 kg (48 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 180 kg before mounting structure.
- Is the Absen MR4.8 Matte i suitable for outdoor use?
- No — the Absen MR4.8 Matte i is an indoor cabinet. Its 1,000 nits suit controlled lighting, not direct sun.
