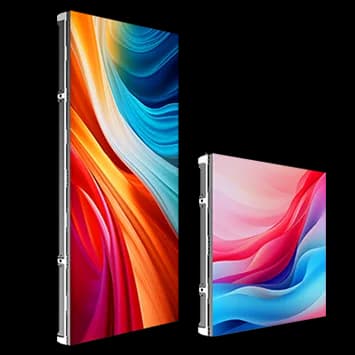

Absen AW3.9 specs
Absen AW Series outdoor fine pixel pitch LED display, pixel pitch as low as 2.5mm, 5500 nits, 7680Hz refresh – grain-free, vivid colors up close. IP65 all-weather + smart maintenance ensures stable, low-cost operation in extreme conditions. Ideal for street advertising in shopping districts, bus shelters, and high-speed rail stations.
Physical
- Pixel pitch
- 3.9 mm
- Cabinet size (W×H×D)
- 500 × 500 × 83 mm
- Weight
- 7 kg
- Weight per m²
- 28 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front & rear
- Cabinet resolution
- 128 × 128 px (1:1)
- Pixel density
- 65,536 px/m²
- Brightness (calibrated)
- 5,000 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 3,600:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 158 W
- Average power
- 53 W
- Max power per m²
- 632 W/m²
- Average power per m²
- 212 W/m²
- Thermal load
- 539 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- 20 to 50 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC
Manufacturer details
- Power supply
- 100 to 240
- Cabinet material
- Die-casting aluminum
- Short description
- • Pixel Pitch: 1.98mm/2.5mm/2.84mm/3.9mm • Exquisite picture quality • Fully water resistant panel • Efficient heat dissipation • Thin & light die casting panel • Suitable for right-angle stitching applications • Fully Water Resistant Panel that Performs Impeccably in All Kinds of Extreme Weather
- Operating humidity
- 10 ~ 90%
- Pixel configuration
- SMD 3in1 1921
All variations in the AW series
All Absen cabinets →Every Absen AW series cabinet and the exact pitch, size and brightness pairing it ships with.
- Absen AW1.91.98 mm500×500 mm4,500 nits
- Absen AW1.9 1.XXXL1.98 mm500×750 mm4,500 nits
- Absen AW2.52.5 mm500×500 mm4,500 nits
- Absen AW2.5 1.XXXL2.5 mm500×750 mm4,500 nits
- Absen AW2.82.84 mm500×500 mm5,000 nits
- Absen AW2.8 1.XXXL2.84 mm500×750 mm5,000 nits
- AW3.9this model3.9 mm500×500 mm5,000 nits
- Absen AW3.9 1.XXXL3.9 mm500×750 mm5,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 16,384 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
15,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
15,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
8,605cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
7,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,900cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen AW3.9 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Absen AW3.9 draw?
- Each Absen AW3.9 cabinet draws up to 158 W at full white and about 53 W with typical content — 632 W/m² max. A 10-cabinet wall therefore needs up to 1,580 W plus headroom.
- What is the resolution of the Absen AW3.9?
- One cabinet is 128 × 128 pixels at a 3.9 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
- How heavy is a Absen AW3.9 wall?
- A single cabinet weighs 7 kg (28 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 105 kg before mounting structure.
- Is the Absen AW3.9 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
