Absen AW2.8 1.XXXL specs

Absen AW Series outdoor fine pixel pitch LED display, pixel pitch as low as 2.5mm, 5500 nits, 7680Hz refresh – grain-free, vivid colors up close. IP65 all-weather + smart maintenance ensures stable, low-cost operation in extreme conditions. Ideal for street advertising in shopping districts, bus shelters, and high-speed rail stations.

Pitch
1.98 mm2.5 mm2.84 mm3.9 mm
Size
500×500 mm500×750 mm
Nits
4,500 nits5,000 nits
Open in calculatorCompareControllersRunning cost

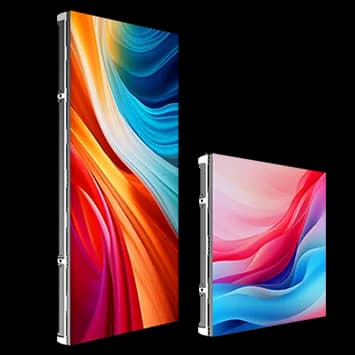

Absen AW2.8 1.XXXL LED cabinet

Physical

Pixel pitch
2.84 mm
Cabinet size (W×H×D)
500 × 750 × 83 mm
Weight
10.3 kg
Weight per m²
27.5 kg/m²
Cabinet type
Fixed install
Service access
Front & rear


Cabinet resolution
176 × 264 px (2:3)
Pixel density
123,904 px/m²
Brightness (calibrated)
5,000 nits
Refresh rate
4,800 Hz
Contrast
3,200:1
Viewing angle (H/V)
160° / 160°
LED type
SMD
Processing depth
15 bit

Power & thermal

Max power
274 W
Average power
92 W
Max power per m²
731 W/m²
Average power per m²
245 W/m²
Thermal load
935 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC

Manufacturer details

Power supply
100 to 240
Cabinet material
Die-casting aluminum
Short description
• Pixel Pitch: 1.98mm/2.5mm/2.84mm/3.9mm • Exquisite picture quality • Fully water resistant panel • Efficient heat dissipation • Thin & light die casting panel • Suitable for right-angle stitching applications • Fully Water Resistant Panel that Performs Impeccably in All Kinds of Extreme Weather
Operating humidity
10 ~ 90%
Pixel configuration
SMD 3in1 1515

All variations in the AW series

All Absen cabinets →

Every Absen AW series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 46,464 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Absen AW2.8 1.XXXL in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Absen AW2.8 1.XXXL draw?
Each Absen AW2.8 1.XXXL cabinet draws up to 274 W at full white and about 92 W with typical content — 731 W/m² max. A 10-cabinet wall therefore needs up to 2,740 W plus headroom.
What is the resolution of the Absen AW2.8 1.XXXL?
One cabinet is 176 × 264 pixels at a 2.84 mm pixel pitch (123,904 px/m²). About 22 cabinets side by side reach 4K width (≈ 11.00 m).
How heavy is a Absen AW2.8 1.XXXL wall?
A single cabinet weighs 10.3 kg (27.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 155 kg before mounting structure.
Is the Absen AW2.8 1.XXXL suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 5,000 nits of calibrated brightness.
