Sharp LD-EC091-108 specs

Built to last, designed to inspire. Combining remarkable energy-efficiency with outstanding imaging performance, the LD-EC Series delivers all the benefits of advanced COB technology at a compelling price-performance ratio.

Pitch
0.9375 mm1.25 mm1.5625 mm1.875 mm
Size
600×338 mm2412×1406 mm3612×2081 mm3612×2037 mm4812×2756 mm2412×1362 mm4812×2712 mm3012×1744 mm3012×1700 mm
Nits
600 nits
Open in calculatorCompareControllersRunning costDatasheet

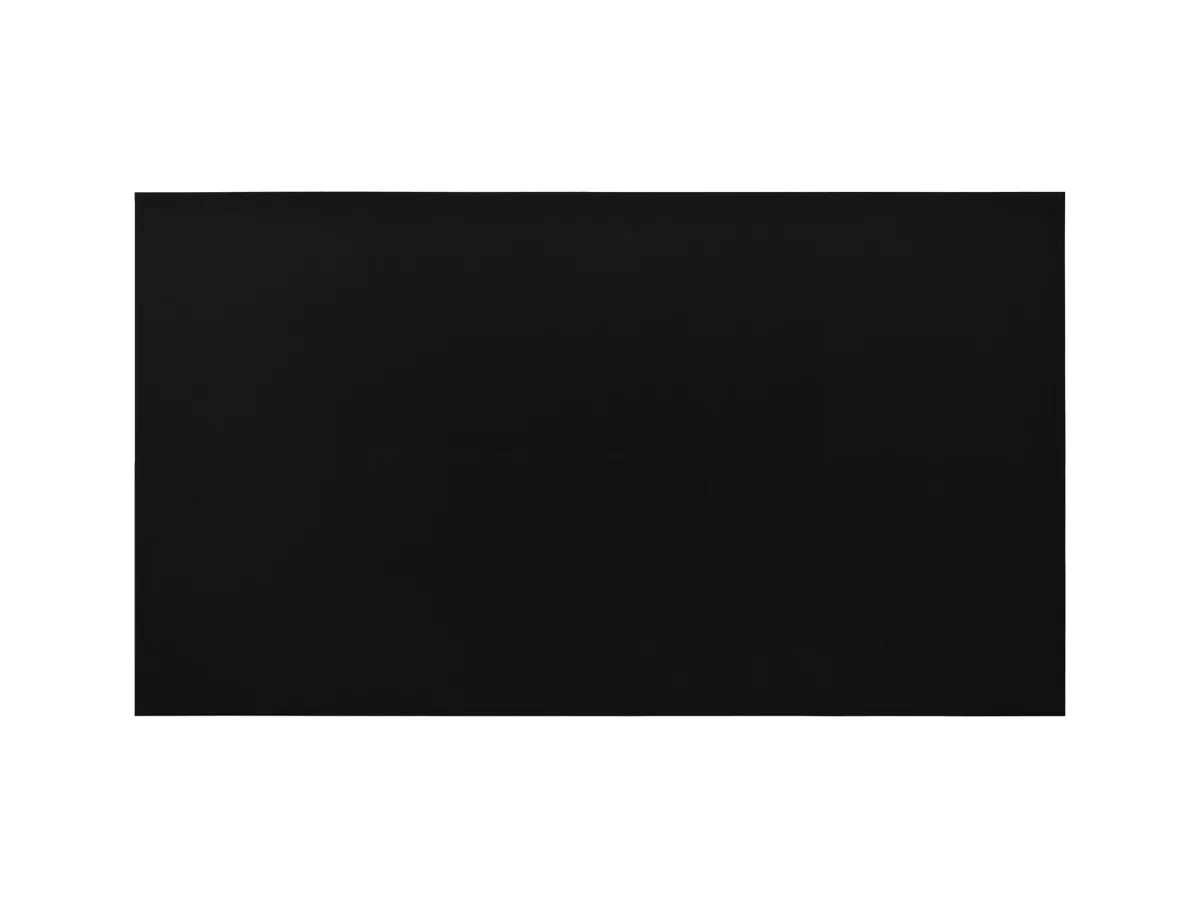

Sharp LD-EC091-108 LED cabinet

Physical

Pixel pitch
0.9375 mm
Cabinet size (W×H×D)
2,412 × 1,406 × 50 mm
Weight
89.7 kg
Weight per m²
26.5 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
2,560 × 1,440 px (16:9)
Pixel density
1,087,026 px/m²
Brightness (calibrated)
600 nits
Refresh rate
3,840 Hz
Contrast
8,000:1
Viewing angle (H/V)
160° / 140°
LED type
COB
Processing depth
14 bit

Power & thermal

Max power
1,008 W
Average power
672 W
Max power per m²
297 W/m²
Average power per m²
198 W/m²
Thermal load
3,439 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP40
IP rating (rear)
IP20
Operating temperature
-10 to 40 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC Class A, RoHS, UKCA

Manufacturer details

Layout
4x4
Warranty
2 years
Scan rate
1/60 dynamic scan
Order code
LDEC091-108
Module model
LD-EC091
Product kind
bundle
Video inputs
1 x HDMI
Product group
Indoor LED 0.9 mm 108" QHD Bundle
Site category
Essential Indoor
Active area mm
2400 x 1350
Control inputs
1 x LAN
Cabinet material
Aluminum Cabinet
Shipping content
1x LED Controller; LED Modules (16 Cabinets, 128 Pixel Cards); Overframe Kit (4x4); Pixel Card Removal Tool; Powerbar (depending on version); Spare Parts Kit; Wall mount (4x4)
Color temperature
3000-9500 K
Frame overhead mm
12 x 56
Module dimensions
600 x 337.5 x 27.4 mm
Module resolution
640x360
Contrast published
8000:1
Display resolution
2560x1440
Lifetime published
100000 hrs (50% brightness)
Grayscale published
14 bit
Pixel configuration
FlipChip COB (0407)
Brightness published
600 cd/m² (max.)
Refresh rate published
≤ 3840 Hz

All variations in the LD-EC series

All Sharp cabinets →

Every Sharp LD-EC series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 3,686,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-EC091-108 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Sharp LD-EC091-108 draw?
Each Sharp LD-EC091-108 cabinet draws up to 1,008 W at full white and about 672 W with typical content — 297 W/m² max. A 10-cabinet wall therefore needs up to 10,080 W plus headroom.
What is the resolution of the Sharp LD-EC091-108?
One cabinet is 2,560 × 1,440 pixels at a 0.9375 mm pixel pitch (1,087,026 px/m²). About 2 cabinets side by side reach 4K width (≈ 4.82 m).
How heavy is a Sharp LD-EC091-108 wall?
A single cabinet weighs 89.7 kg (26.5 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 1,346 kg before mounting structure.
Is the Sharp LD-EC091-108 suitable for outdoor use?
No — the Sharp LD-EC091-108 is an indoor cabinet (IP40 front). Its 600 nits suit controlled lighting, not direct sun.
