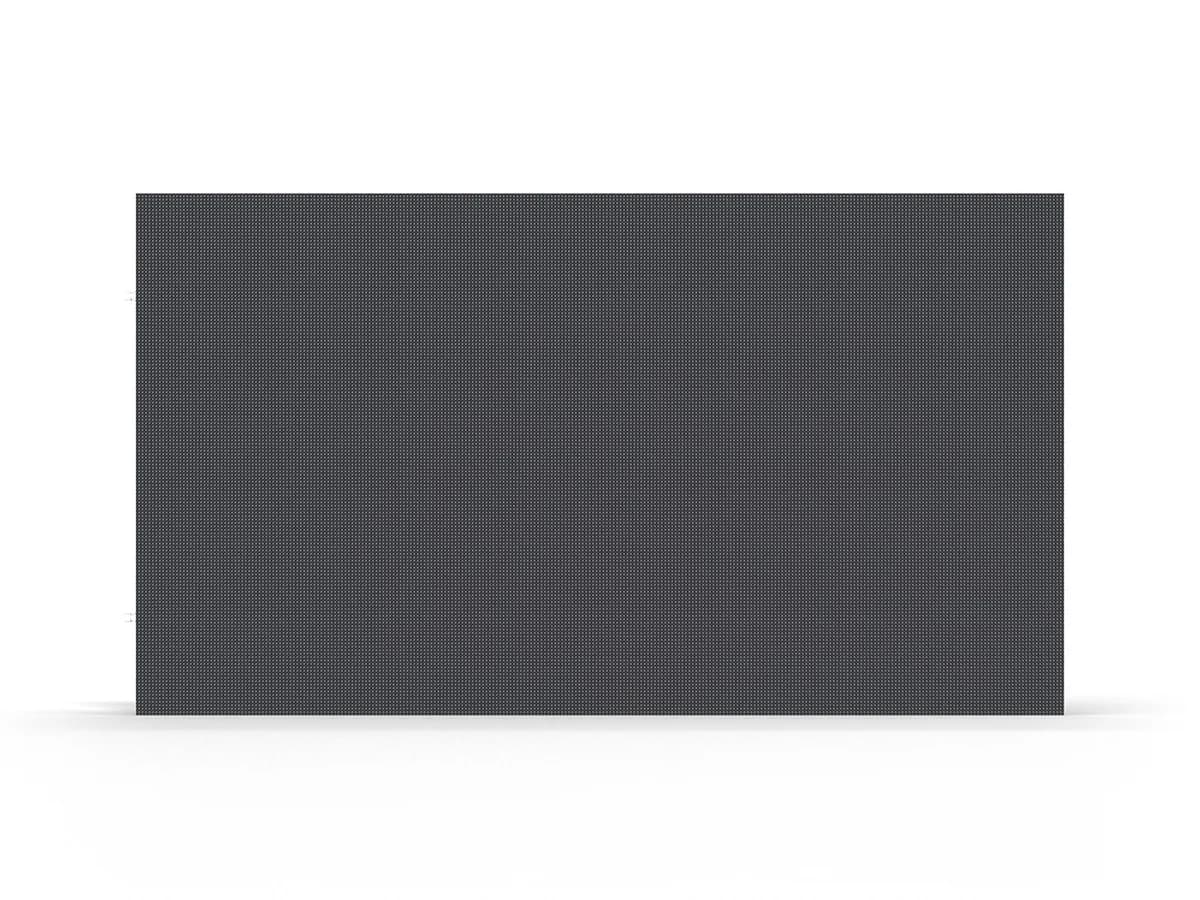

Sharp LD-E181-F specs
The Sharp E Series provides cost conscience customers impressive LED imaging without compromising on the service and support expected from the Sharp brand. With 4 popular different pixel pitch options (1.2mm, 1.5mm, 1.8mm, and 2.5mm) the optimum display resolution can be achieved regardless of viewing distance; plus, the front serviceable design allows easy access and quick maintenance when needed. The LD-E181 is a 1.87mm pixel pitch module designed to deliver the advantages of a seamless dvLED display in a cost effective, accessible package. Boardrooms, auditoriums, retail, and education are just some of the applications where the Sharp E series is designed to be integrated. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.
Physical
- Pixel pitch
- 1.875 mm
- Cabinet size (W×H×D)
- 3,612 × 2,131 × 29 mm
- Weight
- 169.2 kg
- Weight per m²
- 22 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 1,920 × 1,080 px (16:9)
- Pixel density
- 269,398 px/m²
- Brightness (calibrated)
- 800 nits
- Refresh rate
- 3,840 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 140° / 140°
- LED type
- SMD
- Processing depth
- 16 bit
Power & thermal
- Max power
- 4,500 W
- Average power
- 1,548 W
- Max power per m²
- 585 W/m²
- Average power per m²
- 201 W/m²
- Thermal load
- 15,354 BTU/h per cabinet
Environment
- Rated for
- Indoor
- IP rating (front)
- IP20
- IP rating (rear)
- IP20
- Operating temperature
- -20 to 40 °C
- LED lifetime
- 100,000 h
- Certifications
- CE, ETL, FCC Class A, RoHS
Manufacturer details
- Layout
- 6x6
- Warranty
- 2 years
- Scan rate
- 1/60 dynamic scan
- Module model
- LD-E181
- Product kind
- bundle
- Video inputs
- 1 x 3G SDI; 1 x DVI-D; 1 x HDMI
- Product group
- 1.87mm Full HD 162" dvLED display kit
- Site category
- US catalogue
- Active area mm
- 3600 x 2025
- Cabinet material
- Aluminum Cabinet
- Color temperature
- 3000-9500 K
- Frame overhead mm
- 12 x 106
- Module dimensions
- 600 x 337.5 x 29 mm
- Module resolution
- 320x180
- Contrast published
- 5000:1
- Display resolution
- 1920x1080
- Lifetime published
- 100000 hrs (50% brightness)
- Grayscale published
- 16 bit
- Pixel configuration
- SMD (1415) / 3-in-1 SMD (Black)
- Brightness published
- 800 cd/m² typical / 880 cd/m² maximum
- Refresh rate published
- ≤ 3840 Hz
All variations in the LD-E series
All Sharp cabinets →Every Sharp LD-E series cabinet and the exact pitch, size and brightness pairing it ships with.
- Sharp LD-E1211.25 mm600×338 mm600 nits
- Sharp LD-E121-1081.25 mm2412×1406 mm600 nits
- Sharp LD-E121-2171.25 mm4812×2756 mm600 nits
- Sharp LD-E121-F1.25 mm2400×1350 mm600 nits
- Sharp LD-E121-U1.25 mm4800×2700 mm600 nits
- Sharp LD-E1511.5625 mm600×338 mm600 nits
- Sharp LD-E151-1351.5625 mm3012×1744 mm600 nits
- Sharp LD-E151-F1.5625 mm3012×1688 mm600 nits
- Sharp LD-E1811.875 mm600×338 mm800 nits
- Sharp LD-E181-1621.875 mm3612×2081 mm800 nits
- LD-E181-Fthis model1.875 mm3612×2131 mm800 nits
- Sharp LD-E2512.5 mm600×338 mm1,000 nits
- Sharp LD-E251-2172.5 mm4812×2756 mm1,000 nits
- Sharp LD-E251-F2.5 mm4800×2700 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 2,073,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- NovaStar MX6000 ProNovaStarConfirm ecosystem
64cabinets
64 × Mixed141M px total · port-bound
Wire it - Brompton Technology Tessera SQ200BromptonConfirm ecosystem
16cabinets
2 × Fibre36M px total · port-bound
Wire it - Megapixel VR HELIOS 8KMegapixelConfirm ecosystem
16cabinets
8 × Fibre35M px total · port-bound
Wire it - Samsung SNOW-AAEManufacturer's ownConfirm ecosystem
16cabinets
8 × Fibre33.2M px total · port-bound
Wire it - NovaStar CX80 ProNovaStarConfirm ecosystem
16cabinets
16 × Mixed35.4M px total · port-bound
Wire it - NovaStar MX2000 ProNovaStarConfirm ecosystem
16cabinets
16 × Mixed35.4M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-E181-F in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Sharp LD-E181-F draw?
- Each Sharp LD-E181-F cabinet draws up to 4,500 W at full white and about 1,548 W with typical content — 585 W/m² max. A 10-cabinet wall therefore needs up to 45,000 W plus headroom.
- What is the resolution of the Sharp LD-E181-F?
- One cabinet is 1,920 × 1,080 pixels at a 1.875 mm pixel pitch (269,398 px/m²). About 2 cabinets side by side reach 4K width (≈ 7.22 m).
- How heavy is a Sharp LD-E181-F wall?
- A single cabinet weighs 169.2 kg (22 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 2,538 kg before mounting structure.
- Is the Sharp LD-E181-F suitable for outdoor use?
- No — the Sharp LD-E181-F is an indoor cabinet (IP20 front). Its 800 nits suit controlled lighting, not direct sun.
