Sharp LD-E151-F specs

The Sharp E Series provides cost conscience customers impressive LED imaging without compromising on the service and support expected from the Sharp brand. This 135" Full HD kit is built with Sharp's 1.56mm LD-E151-F module designed to deliver all the advantages of a seamless LED display in a cost effective package. Boardrooms, auditoriums, retail, and education are just some of the applications where the Sharp E series is designed to be integrated. The front serviceable design allows easy access and quick maintenance when needed. Sharp offers full planning and design, installation and post installation maintenance support, ensuring you get a custom tailored solution allowing you to focus on what's most important – your business.

Pitch
1.25 mm1.5625 mm1.875 mm2.5 mm
Size
600×338 mm2412×1406 mm4812×2756 mm2400×1350 mm4800×2700 mm3012×1744 mm3012×1688 mm3612×2081 mm3612×2131 mm
Nits
600 nits800 nits1,000 nits
Open in calculatorCompareControllersRunning costDatasheet

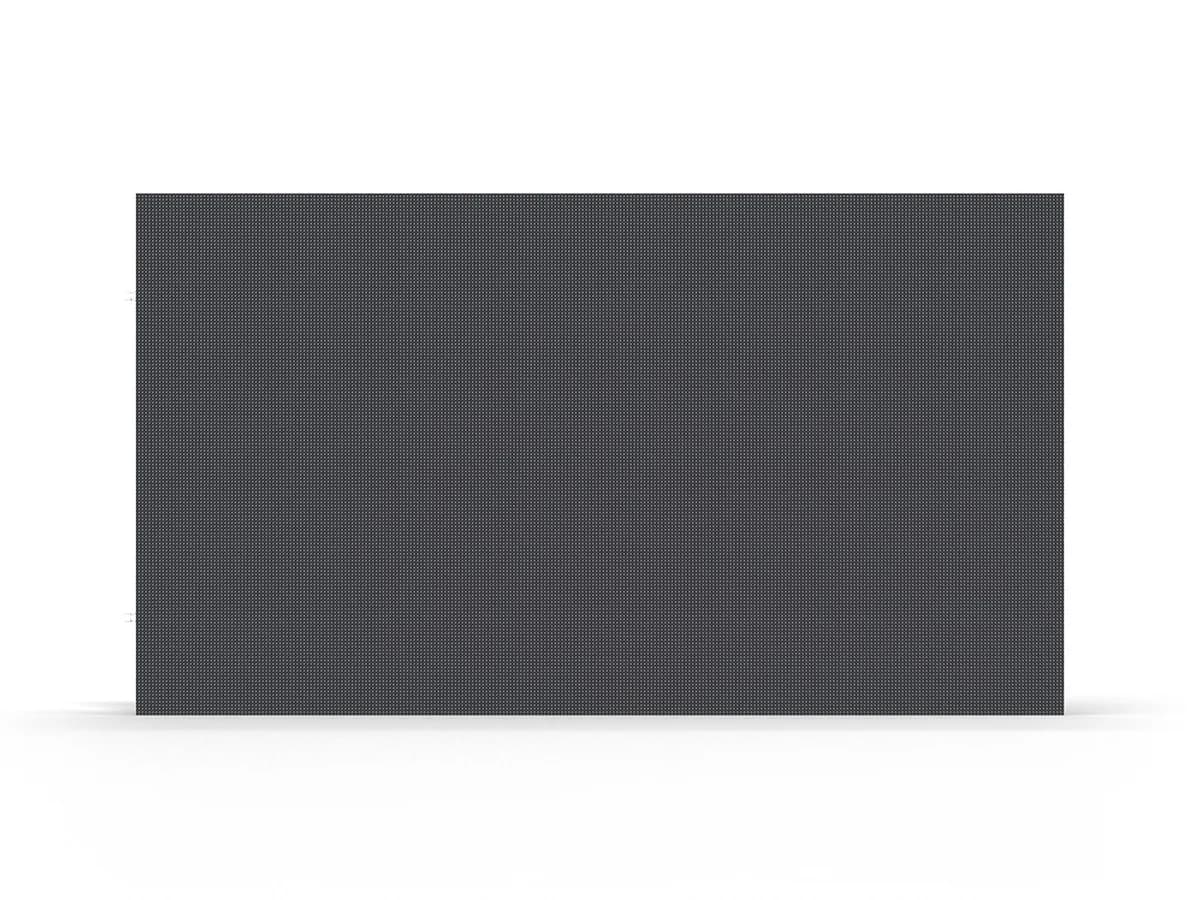

Sharp LD-E151-F LED cabinet

Physical

Pixel pitch
1.5625 mm
Cabinet size (W×H×D)
3,012 × 1,688 × 29 mm
Weight
117.5 kg
Weight per m²
23.1 kg/m²
Cabinet type
Fixed install
Service access
Front


Cabinet resolution
1,920 × 1,080 px (16:9)
Pixel density
407,968 px/m²
Brightness (calibrated)
600 nits
Refresh rate
3,840 Hz
Contrast
4,000:1
Viewing angle (H/V)
140° / 140°
LED type
SMD
Processing depth
16 bit

Power & thermal

Max power
3,125 W
Average power
1,000 W
Max power per m²
615 W/m²
Average power per m²
197 W/m²
Thermal load
10,663 BTU/h per cabinet

Environment

Rated for
Indoor
IP rating (front)
IP20
IP rating (rear)
IP20
Operating temperature
-20 to 40 °C
LED lifetime
100,000 h
Certifications
CE, ETL, FCC Class A, RoHS

Manufacturer details

Layout
5x5
Warranty
2 years
Scan rate
1/54 dynamic scan
Module model
LD-E151
Product kind
bundle
Video inputs
1 x 3G SDI; 1 x DVI-D; 1 x HDMI
Product group
1.56mm Full HD 135" dvLED display kit
Site category
US catalogue
Active area mm
3000 x 1687.5
Cabinet material
Aluminum Cabinet
Color temperature
3000-9500 K
Frame overhead mm
12 x 0
Module dimensions
600 x 337.5 x 29 mm
Module resolution
384x216
Contrast published
4000:1
Display resolution
1920x1080
Lifetime published
100000 hrs (50% brightness)
Grayscale published
16 bit
Pixel configuration
SMD (1212) / 3-in-1 SMD (Black)
Brightness published
600 cd/m² typical / 660 cd/m² maximum
Refresh rate published
≤ 3840 Hz

All variations in the LD-E series

All Sharp cabinets →

Every Sharp LD-E series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 2,073,600 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Sharp LD-E151-F in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the Sharp LD-E151-F draw?
Each Sharp LD-E151-F cabinet draws up to 3,125 W at full white and about 1,000 W with typical content — 615 W/m² max. A 10-cabinet wall therefore needs up to 31,250 W plus headroom.
What is the resolution of the Sharp LD-E151-F?
One cabinet is 1,920 × 1,080 pixels at a 1.5625 mm pixel pitch (407,968 px/m²). About 2 cabinets side by side reach 4K width (≈ 6.02 m).
How heavy is a Sharp LD-E151-F wall?
A single cabinet weighs 117.5 kg (23.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 1,763 kg before mounting structure.
Is the Sharp LD-E151-F suitable for outdoor use?
No — the Sharp LD-E151-F is an indoor cabinet (IP20 front). Its 600 nits suit controlled lighting, not direct sun.
