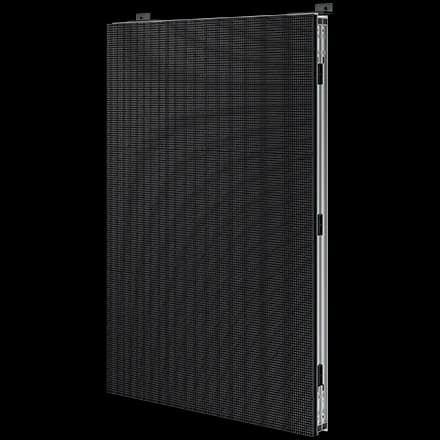

Samsung XHB060-B LTYPE-43 specs
Introducing Samsung XHB series: a reliable, attention-grabbing outdoor display designed to perform in any scenario. With consistently high brightness, XHB is the ideal solution to deliver clear and brilliant visuals day and night, whether it's sunny or stormy.
Physical
- Pixel pitch
- 6.16 mm
- Cabinet size (W×H×D)
- 690 × 1,035 × 690 mm
- Weight
- 42.7 kg
- Weight per m²
- 59.8 kg/m²
- Cabinet type
- Fixed install
- Cabinet resolution
- 112 × 168 px (2:3)
- Pixel density
- 26,347 px/m²
- Brightness (calibrated)
- 8,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 8,000:1
- Viewing angle (H/V)
- 160° / 95°
- LED type
- SMD
Power & thermal
- Max power
- 960 W
- Average power
- 320 W
- Max power per m²
- 1,344 W/m²
- Average power per m²
- 448 W/m²
- Thermal load
- 3,276 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP66
- IP rating (rear)
- IP66
- Operating temperature
- -40 to 55 °C
- LED lifetime
- 100,000 h
- Certifications
- UL48, EMC Class A
Manufacturer details
- Power supply
- 100 to 240
- Frame rates hz
- 50 / 60
- Cabinet variant
- LTYPE-43
- Weight published
- 42.7 Kg
- Color temperature
- 6,500K
- Contrast published
- 8,000:1
- Operating humidity
- 5 ~ 95%
- Samsung model code
- LH060XHBTLB
- Modules per cabinet
- 2x3 + 2x3
- Pixel configuration
- SMD 3-in-1 2727 (XDC, Au Pd)
- Brightness published
- 8,000 nit
All variations in the XHB-B series
All Samsung cabinets →Every Samsung XHB-B series cabinet and the exact pitch, size and brightness pairing it ships with.
- Samsung XHB060-B Flat-126.16 mm345×690 mm8,000 nits
- Samsung XHB060-B Flat-136.16 mm345×1035 mm8,000 nits
- Samsung XHB060-B Flat-226.16 mm690×690 mm8,000 nits
- Samsung XHB060-B Flat-236.16 mm690×1035 mm8,000 nits
- Samsung XHB060-B LTYPE-426.16 mm690×690 mm8,000 nits
- XHB060-B LTYPE-43this model6.16 mm690×1035 mm8,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 18,816 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
13,600cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
13,600cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
7,493cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
6,800cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
3,400cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
3,400cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open Samsung XHB060-B LTYPE-43 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the Samsung XHB060-B LTYPE-43 draw?
- Each Samsung XHB060-B LTYPE-43 cabinet draws up to 960 W at full white and about 320 W with typical content — 1,344 W/m² max. A 10-cabinet wall therefore needs up to 9,600 W plus headroom.
- What is the resolution of the Samsung XHB060-B LTYPE-43?
- One cabinet is 112 × 168 pixels at a 6.16 mm pixel pitch (26,347 px/m²). About 34 cabinets side by side reach 4K width (≈ 23.46 m).
- How heavy is a Samsung XHB060-B LTYPE-43 wall?
- A single cabinet weighs 42.7 kg (59.8 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 641 kg before mounting structure.
- Is the Samsung XHB060-B LTYPE-43 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP66 front ingress protection and 8,000 nits of calibrated brightness.
Size a wall with the XHB060-B LTYPE-43
Dimensions, resolution, power, weight and a validated wiring diagram — free, no account needed.
