How much power does the LG LWBC039 draw?

Each LG LWBC039 cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.

What is the resolution of the LG LWBC039?

One cabinet is 128 × 256 pixels at a 3.91 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).

How heavy is a LG LWBC039 wall?

A single cabinet weighs 12 kg (24 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 180 kg before mounting structure.

Is the LG LWBC039 suitable for outdoor use?

No — the LG LWBC039 is an indoor cabinet (IP5X front). Its 3,500 nits suit controlled lighting, not direct sun.

3.91 mm pitchIndoorSMD

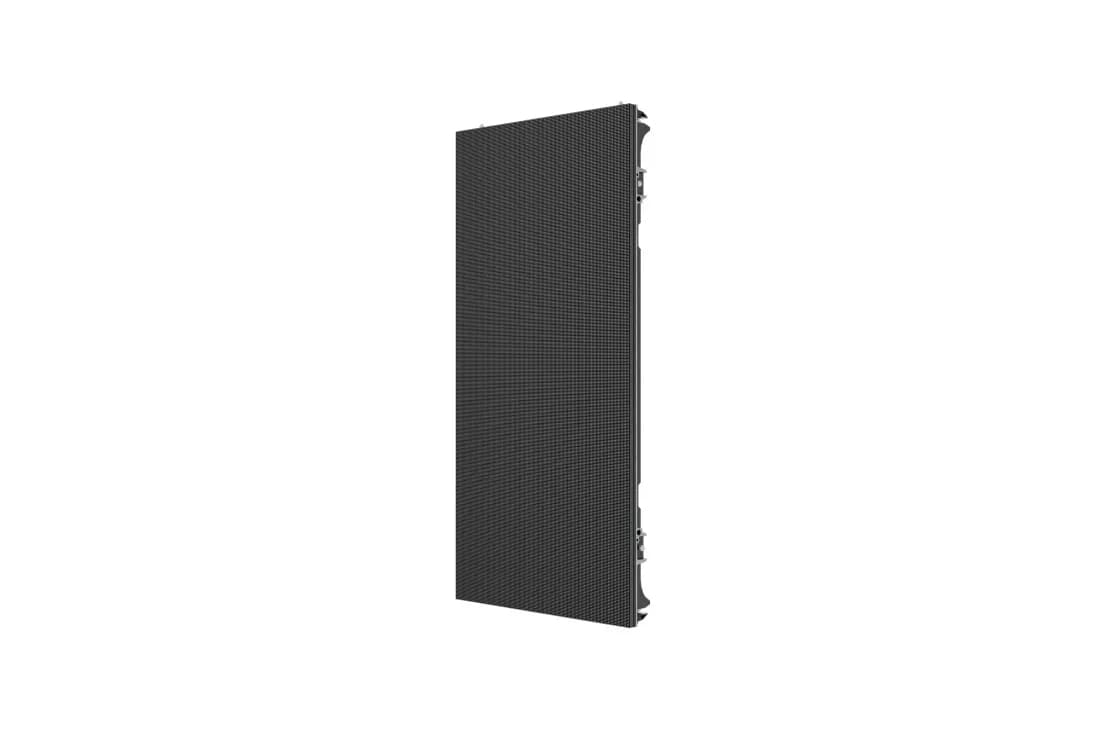

LG LWBC039 specs

With a brightness of 3,500 nits, LWBC clearly delivers content and attracts public attention. Turn your window display up a notch with LWBC series Direct View LED!

Pitch

2.604 mm 2.976 mm3.91 mm

Size

500×1000 mm

Nits

3,500 nits

Open in calculator Compare Controllers Running cost

Physical

Pixel pitch: 3.91 mm
Cabinet size (W×H×D): 500 × 1,000 × 68 mm
Weight: 12 kg
Weight per m²: 24 kg/m²
Cabinet type: Fixed install


Cabinet resolution: 128 × 256 px (1:2)
Pixel density: 65,536 px/m²
Brightness (calibrated): 3,500 nits
Viewing angle (H/V): 160° / 140°
LED type: SMD
Processing depth: 16 bit

Power & thermal

Max power: 300 W
Average power: 100 W
Max power per m²: 600 W/m²
Average power per m²: 200 W/m²
Thermal load: 1,024 BTU/h per cabinet

Environment

Rated for: Indoor
IP rating (front): IP5X
IP rating (rear): IP5X
Operating temperature: -20 to 40 °C

Manufacturer details

Short description: "High Visibility Under the Sunlight with a brightness of 3,500 nits."
Operating humidity: 10 ~ 90%
Pixel configuration: 3 in 1 SMD

All variations in the LWBC series

All LG cabinets →

Every LG LWBC series cabinet and the exact pitch, size and brightness pairing it ships with.

LG LWBC0262.604 mm500×1000 mm3,500 nits
LG LWBC0292.976 mm500×1000 mm3,500 nits
LWBC039this model3.91 mm500×1000 mm3,500 nits

Controllers that drive this panel

All controllers →

Each cabinet carries 32,768 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Colorlight U15 Max
ColorlightConfirm ecosystem
7,600cabinets
400 × Mixed
520M px total · port-bound
Wire it
NovaStar H20
NovaStarConfirm ecosystem
7,600cabinets
400 × Mixed
260M px total · port-bound
Wire it
NovaStar MX6000 Pro
NovaStarConfirm ecosystem
4,302cabinets
64 × Mixed
141M px total · capacity-bound
Wire it
NovaStar H15
NovaStarConfirm ecosystem
3,800cabinets
200 × Mixed
130M px total · port-bound
Wire it
Colorlight U9 Max
ColorlightConfirm ecosystem
1,900cabinets
100 × Mixed
260M px total · port-bound
Wire it
Colorlight U6 Max
ColorlightConfirm ecosystem
1,900cabinets
100 × Mixed
130M px total · port-bound
Wire it

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open LG LWBC039 in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the LG LWBC039 draw?: Each LG LWBC039 cabinet draws up to 300 W at full white and about 100 W with typical content — 600 W/m² max. A 10-cabinet wall therefore needs up to 3,000 W plus headroom.
What is the resolution of the LG LWBC039?: One cabinet is 128 × 256 pixels at a 3.91 mm pixel pitch (65,536 px/m²). About 30 cabinets side by side reach 4K width (≈ 15.00 m).
How heavy is a LG LWBC039 wall?: A single cabinet weighs 12 kg (24 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 180 kg before mounting structure.
Is the LG LWBC039 suitable for outdoor use?: No — the LG LWBC039 is an indoor cabinet (IP5X front). Its 3,500 nits suit controlled lighting, not direct sun.
