INFiLED ORSP10 Lite specs

The stadium perimeter display engineered to UEFA requirements — redundant power and signal, 6000 nit visibility, IP65 rating and impact protection players can run into.

Pitch
6.25 mm10 mm
Size
1600×956 mm1600×900 mm
Nits
5,000 nits6,000 nits
Open in calculatorCompareControllersRunning costDatasheet

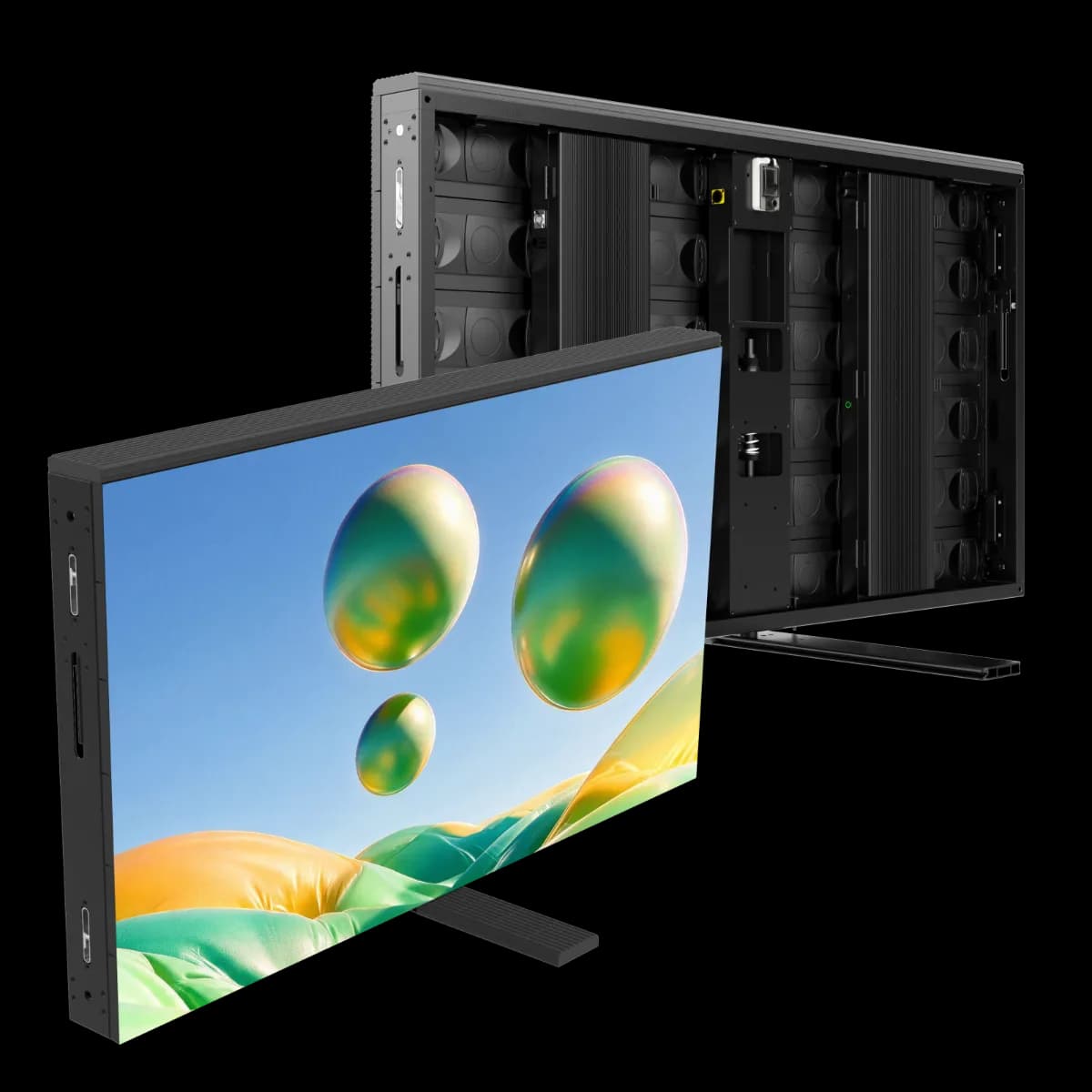

INFiLED ORSP10 Lite LED cabinet

Physical

Pixel pitch
10 mm
Cabinet size (W×H×D)
1,600 × 900 × 124 mm
Weight
65 kg
Weight per m²
45.1 kg/m²
Cabinet type
Perimeter
Service access
Front & rear


Cabinet resolution
160 × 90 px (16:9)
Pixel density
10,000 px/m²
Brightness (calibrated)
6,000 nits
Refresh rate
3,840 Hz
Contrast
5,000:1
Viewing angle (H/V)
160° / 110°
LED type
SMD
Processing depth
14 bit

Power & thermal

Max power
1,050 W
Average power
350 W
Max power per m²
729 W/m²
Average power per m²
243 W/m²
Thermal load
3,583 BTU/h per cabinet

Environment

Rated for
Outdoor
IP rating (front)
IP65
IP rating (rear)
IP65
Operating temperature
-20 to 50 °C
LED lifetime
100,000 h
Certifications
CE, ETL

Manufacturer details

Driver ic
MBI5251B
Scan rate
1/3
Brochure url
https://www.infiled.com/wp-content/uploads/2024/01/spseries_brochure_digital.pdf
Control mode
Synchronous Display
Power supply
100-240V AC, 50/60Hz
Signal input
DVI, HDMI, DP, SDI
Site category
Sports
Display colors
4.41T
Frame rates hz
50-60Hz
Led wavelength
R:622-629nm/G:520-531nm/B:471-480nm
Receiving card
Novastar
Pitch published
10mm
Power published
1050 / 350 W/panel (max / avg)
Cabinet material
Aluminum Profile
Control distance
Ethernetcable ≤ 120m or Fiber Optic ≤ 15km
Physical density
10.000pixels/㎡
Weight published
65kg (143,30lb)
Color temperature
6500K (3000K~10000K adjustable）
Module dimensions
400x150mm
Module resolution
40x15pixels
Contrast published
5000:1
Lifetime published
≥100000h
Operating humidity
10-90% RH Non-condensing
Grayscale published
14bit
Pixel configuration
3-in-1 SMD
Brightness published
6000nits
Brightness adjustment
0～100% (256 levels)
Service access published
Front / Rear

All variations in the SP series

All INFiLED cabinets →

Every INFiLED SP series cabinet and the exact pitch, size and brightness pairing it ships with.

Controllers that drive this panel

All controllers →

Each cabinet carries 14,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.

Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open INFiLED ORSP10 Lite in the calculator to lay out the real chains and validate them.

Design a wall with this panel

Frequently asked

How much power does the INFiLED ORSP10 Lite draw?
Each INFiLED ORSP10 Lite cabinet draws up to 1,050 W at full white and about 350 W with typical content — 729 W/m² max. A 10-cabinet wall therefore needs up to 10,500 W plus headroom.
What is the resolution of the INFiLED ORSP10 Lite?
One cabinet is 160 × 90 pixels at a 10 mm pixel pitch (10,000 px/m²). About 24 cabinets side by side reach 4K width (≈ 38.40 m).
How heavy is a INFiLED ORSP10 Lite wall?
A single cabinet weighs 65 kg (45.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 975 kg before mounting structure.
Is the INFiLED ORSP10 Lite suitable for outdoor use?
Yes — it is rated for outdoor use with IP65 front ingress protection and 6,000 nits of calibrated brightness.
