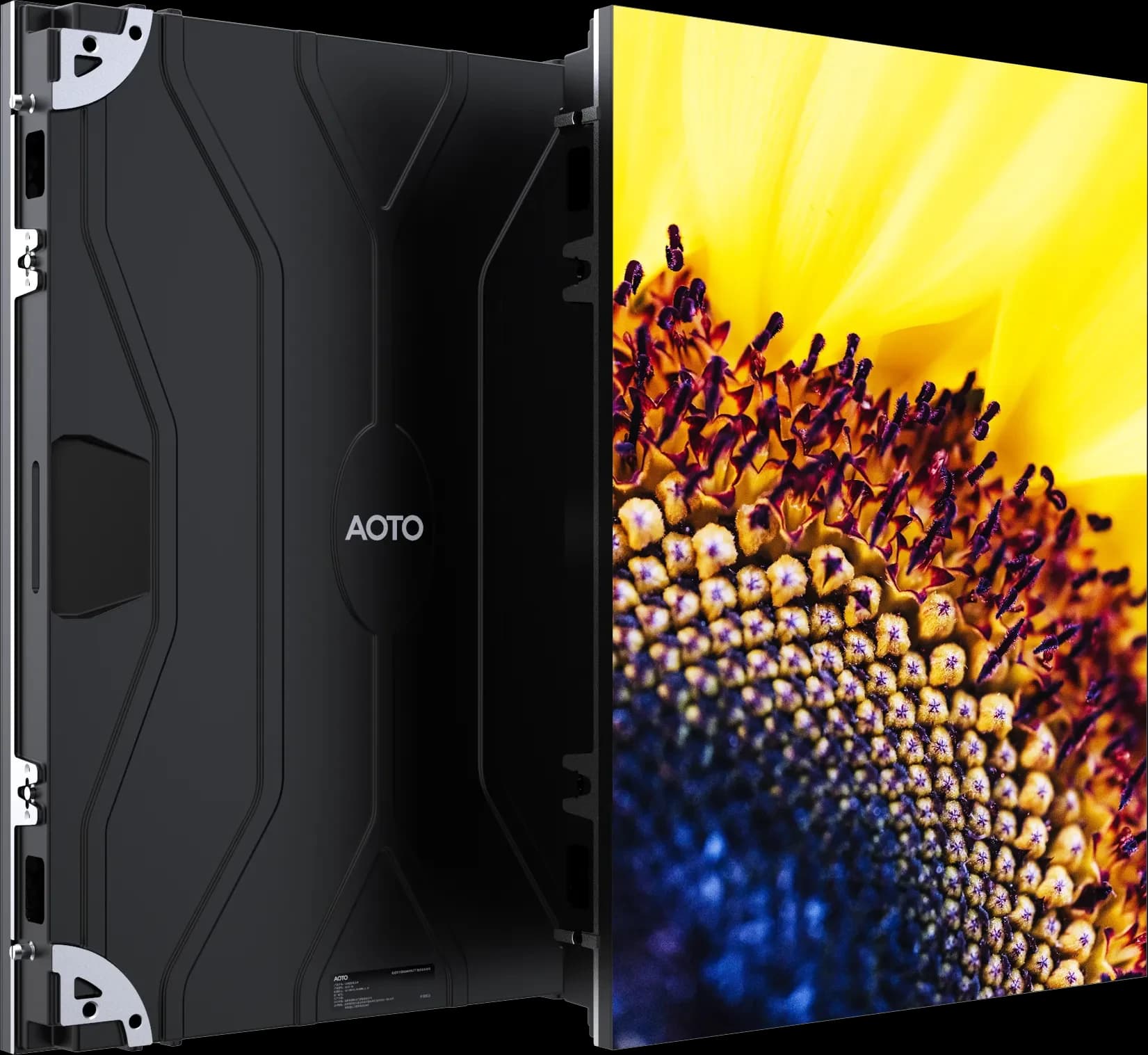

AOTO U2.8 specs
The U-XR series can be used for XR virtual shooting. It features a robust structure, a customizable inner arc housing, and display features such as low reflectivity, high refresh rate, and wide viewing angle, making it suitable for the construction needs of various XR studios.
Physical
- Pixel pitch
- 2.85714 mm
- Cabinet size (W×H×D)
- 480 × 640 × 63 mm
- Weight
- 7.1 kg
- Weight per m²
- 23.1 kg/m²
- Cabinet type
- Fixed install
- Service access
- Front
- Cabinet resolution
- 168 × 224 px (3:4)
- Pixel density
- 122,500 px/m²
- Brightness (calibrated)
- 1,000 nits
- Refresh rate
- 7,680 Hz
- Contrast
- 5,000:1
- Viewing angle (H/V)
- 160° / 160°
- LED type
- SMD
Power & thermal
- Max power
- 150 W
- Average power
- 50 W
- Max power per m²
- 488 W/m²
- Average power per m²
- 163 W/m²
- Thermal load
- 512 BTU/h per cabinet
Environment
- Rated for
- Indoor
- Operating temperature
- -10 to 40 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Usage
- XR studio (U-series cabinet, portrait 480×640)
- Scan rate
- 1/14
- Curve range
- inner arc
- Power supply
- AC100-240V 50/60Hz
- Site category
- XR/VP
- Pitch published
- 2.85mm
- Cabinet material
- die-cast aluminium, black
- Operating humidity
- 10-80% RH
- Pixel configuration
- SMD 1R1G1B
All variations in the U-XR series
All AOTO cabinets →Every AOTO U-XR series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO U2.32.35294 mm480×640 mm1,000 nits
- U2.8this model2.85714 mm480×640 mm1,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 37,632 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
6,800cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
6,800cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
3,746cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
3,400cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
1,700cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO U2.8 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO U2.8 draw?
- Each AOTO U2.8 cabinet draws up to 150 W at full white and about 50 W with typical content — 488 W/m² max. A 10-cabinet wall therefore needs up to 1,500 W plus headroom.
- What is the resolution of the AOTO U2.8?
- One cabinet is 168 × 224 pixels at a 2.85714 mm pixel pitch (122,500 px/m²). About 23 cabinets side by side reach 4K width (≈ 11.04 m).
- How heavy is a AOTO U2.8 wall?
- A single cabinet weighs 7.1 kg (23.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 107 kg before mounting structure.
- Is the AOTO U2.8 suitable for outdoor use?
- No — the AOTO U2.8 is an indoor cabinet. Its 1,000 nits suit controlled lighting, not direct sun.
