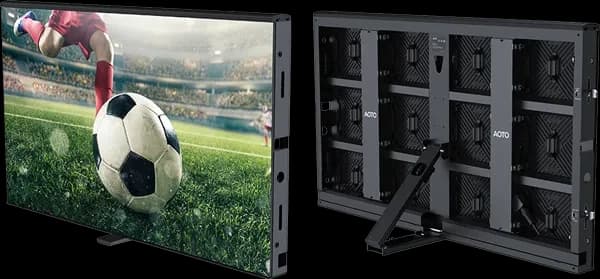

AOTO SP10V 1600x900 specs
The SP series is the world's first SMD panel with 360° protection which is specifically made for sports stadiums. Because of the superior quality of product, the product parameters of SP series, in terms of the aspects of visual effect; contrast ratio; refresh rate; viewing angle, has already become the new standarads of sport authorities: FIFA and UEFA.
Physical
- Pixel pitch
- 10 mm
- Cabinet size (W×H×D)
- 1,600 × 900 × 120 mm
- Weight
- 52 kg
- Weight per m²
- 36.1 kg/m²
- Cabinet type
- Perimeter
- Service access
- Rear
- Cabinet resolution
- 160 × 90 px (16:9)
- Pixel density
- 10,000 px/m²
- Brightness (calibrated)
- 6,000 nits
- Refresh rate
- 18,000 Hz
- Contrast
- 8,500:1
- Viewing angle (H/V)
- 160° / 100°
- LED type
- SMD
Power & thermal
- Max power
- 1,000 W
- Average power
- 382 W
- Max power per m²
- 694 W/m²
- Average power per m²
- 265 W/m²
- Thermal load
- 3,412 BTU/h per cabinet
Environment
- Rated for
- Outdoor
- IP rating (front)
- IP65
- IP rating (rear)
- IP65
- Operating temperature
- -20 to 50 °C
- LED lifetime
- 100,000 h
Manufacturer details
- Usage
- stadium perimeter (FIFA/UEFA)
- Power supply
- 220-240V 50/60Hz
- Site category
- Sports
- Cabinet variant
- 1600×900
- Pitch published
- 10mm
- Power published
- 1000±10% W max; 382±10% W avg
- Cabinet material
- aluminium, black
- Weight published
- ≤52 kg
- Color temperature
- 2,800-9,300K
- Module dimensions
- 400×300 mm
- Operating humidity
- 10-90% RH
- Pixel configuration
- SMD 1R1G1B
- Brightness published
- ≥6,000 nits
All variations in the SP series
All AOTO cabinets →Every AOTO SP series cabinet and the exact pitch, size and brightness pairing it ships with.
- AOTO SP06V6.25 mm1600×900 mm6,000 nits
- AOTO SP10V 1600x120010 mm1600×1200 mm6,000 nits
- SP10V 1600x900this model10 mm1600×900 mm6,000 nits
Controllers that drive this panel
All controllers →Each cabinet carries 14,400 px, so a controller's port budget and total capacity decide how much wall it drives. Its receiving card is not published — confirm the control ecosystem with your supplier before ordering.
- Colorlight U15 MaxColorlightConfirm ecosystem
18,000cabinets
400 × Mixed520M px total · port-bound
Wire it - NovaStar H20NovaStarConfirm ecosystem
18,000cabinets
400 × Mixed260M px total · port-bound
Wire it - NovaStar MX6000 ProNovaStarConfirm ecosystem
9,791cabinets
64 × Mixed141M px total · capacity-bound
Wire it - NovaStar H15NovaStarConfirm ecosystem
9,000cabinets
200 × Mixed130M px total · port-bound
Wire it - Colorlight U9 MaxColorlightConfirm ecosystem
4,500cabinets
100 × Mixed260M px total · port-bound
Wire it - Colorlight U6 MaxColorlightConfirm ecosystem
4,500cabinets
100 × Mixed130M px total · port-bound
Wire it
Counts assume one cabinet per port-chain hop at 60 Hz / 8-bit. Open AOTO SP10V 1600x900 in the calculator to lay out the real chains and validate them.
Design a wall with this panelFrequently asked
- How much power does the AOTO SP10V 1600x900 draw?
- Each AOTO SP10V 1600x900 cabinet draws up to 1,000 W at full white and about 382 W with typical content — 694 W/m² max. A 10-cabinet wall therefore needs up to 10,000 W plus headroom.
- What is the resolution of the AOTO SP10V 1600x900?
- One cabinet is 160 × 90 pixels at a 10 mm pixel pitch (10,000 px/m²). About 24 cabinets side by side reach 4K width (≈ 38.40 m).
- How heavy is a AOTO SP10V 1600x900 wall?
- A single cabinet weighs 52 kg (36.1 kg/m²). A 5 × 3 wall of 15 cabinets weighs about 780 kg before mounting structure.
- Is the AOTO SP10V 1600x900 suitable for outdoor use?
- Yes — it is rated for outdoor use with IP65 front ingress protection and 6,000 nits of calibrated brightness.
