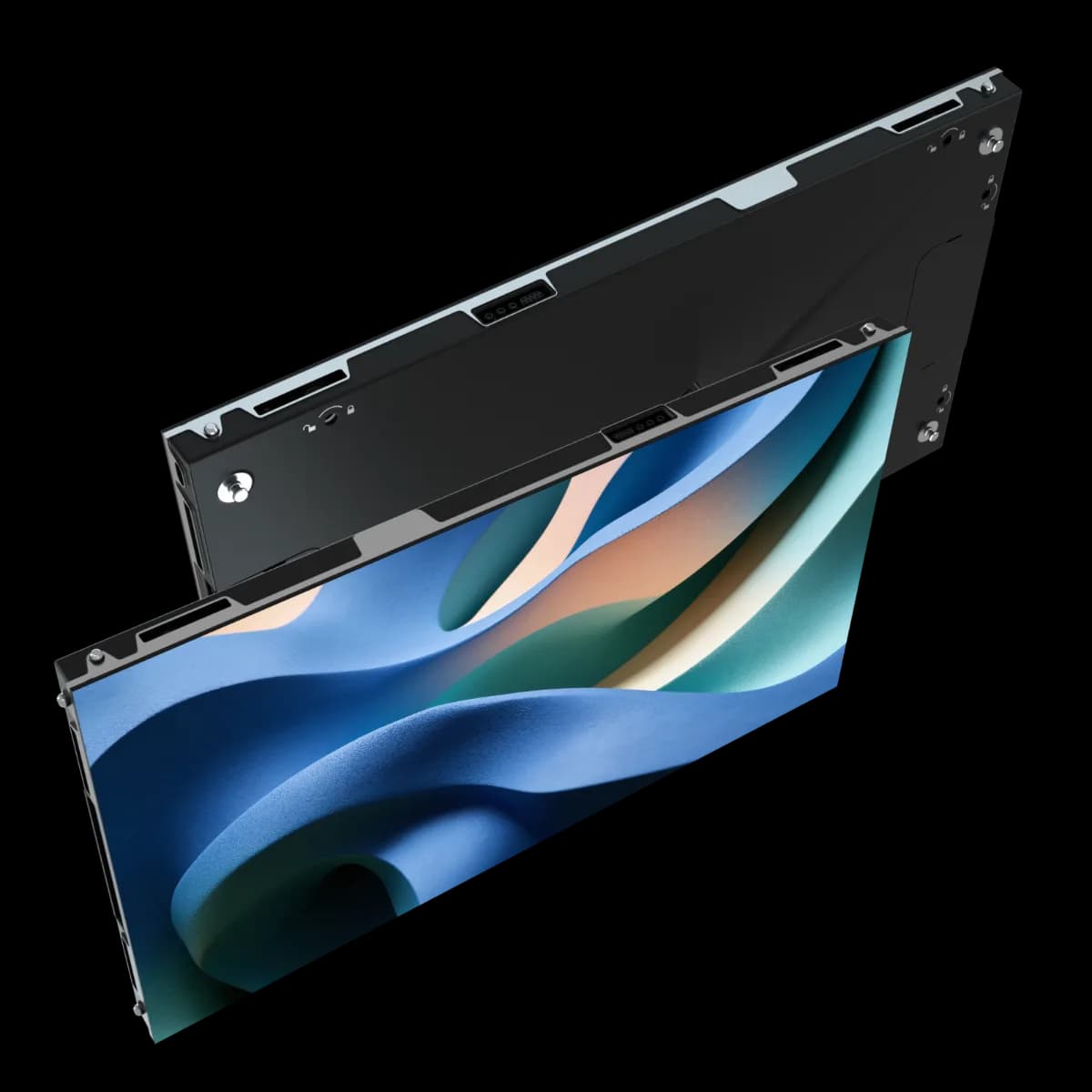

Absen KLCOB1.5 V2 vs INFiLED IRWP1.5 Lite
On measurable specs the Absen KLCOB1.5 V2 leads 9–3. The INFiLED IRWP1.5 Lite can still be the right call where its individual wins — check the highlighted rows — match your constraints.
| Add a panel | ||
|---|---|---|
| Physical | ||
| Pixel pitch | 1.56 mm | 1.56 mm |
| Cabinet size (W×H×D) | 600 × 338 × 39 mm | 600 × 338 × 30 mm |
| Weight per cabinet | 4.5 kg | 5.2 kg |
| Weight per m² | 22.2 kg/m² | 25.7 kg/m² |
| Image | ||
| Cabinet resolution | 384 × 216 px | 384 × 216 px |
| Pixel density | 408,994 px/m² | 409,600 px/m² |
| Brightness | 800 nits | 800 nits |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Contrast | 15,000:1 | 5,000:1 |
| Viewing angle (H/V) | 160° / 160° | 160° / 160° |
| LED type | COB | SMD |
| Processing depth | 19 bit | 14 bit |
| Power & thermal | ||
| Average power | 23 W | 50 W |
| Max power | 67 W | 150 W |
| Max power per m² | 330 W/m² | 741 W/m² |
| Thermal load per cabinet | 229 BTU/h | 512 BTU/h |
| Operational | ||
| Environment | Indoor | Indoor |
| IP rating (front) | IP40 | IP30 |
| IP rating (rear) | IP21 | IP30 |
| Operating temperature | 10 to 40 °C | -10 to 45 °C |
| Service access | Front | Front |
| LED lifetime | 100,000 h | 100,000 h |
| Certifications | CCC, CE, ETL, FCC, UKCA | CE, FCC, ETL, CB, RoHS, REACH, WEEE |
Size a wall with either panel
The calculator shows dimensions, power, weight and a validated wiring diagram for both — swap cabinets with one click.
