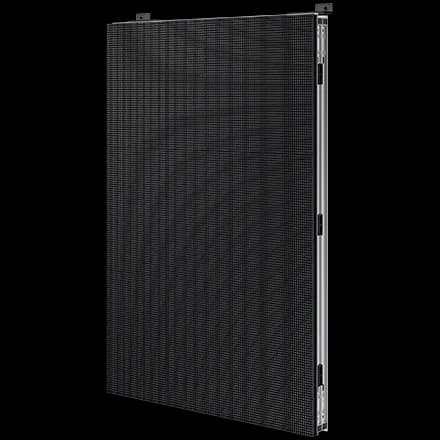

Absen A1021D vs Samsung XHB100-L LTYPE-42
On measurable specs the Absen A1021D leads 8–5. The Samsung XHB100-L LTYPE-42 can still be the right call where its individual wins — check the highlighted rows — match your constraints.
| Add a panel | ||
|---|---|---|
| Physical | ||
| Pixel pitch | 10.66 mm | 10.78 mm |
| Cabinet size (W×H×D) | 1,280 × 960 × 72 mm | 690 × 690 × 690 mm |
| Weight per cabinet | 37 kg | 30.4 kg |
| Weight per m² | 30.1 kg/m² | 63.9 kg/m² |
| Image | ||
| Cabinet resolution | 120 × 90 px | 64 × 64 px |
| Pixel density | 8,789 px/m² | 8,603 px/m² |
| Brightness | 10,000 nits | 10,000 nits |
| Refresh rate | 5,000 Hz | 7,680 Hz |
| Contrast | 14,000:1 | 8,000:1 |
| Viewing angle (H/V) | 160° / 77° | 160° / 128° |
| LED type | DIP | SMD |
| Processing depth | 16 bit | — |
| Power & thermal | ||
| Average power | 136 W | 267 W |
| Max power | 406 W | 800 W |
| Max power per m² | 330 W/m² | 1,680 W/m² |
| Thermal load per cabinet | 1,385 BTU/h | 2,730 BTU/h |
| Operational | ||
| Environment | Outdoor | Outdoor |
| IP rating (front) | IP65 | IP66 |
| IP rating (rear) | IP54 | IP66 |
| Operating temperature | -20 to 50 °C | -40 to 55 °C |
| Service access | Front & rear | Front & rear |
| LED lifetime | 100,000 h | 100,000 h |
| Certifications | CE, ETL, FCC | UL48, EMC Class A |
