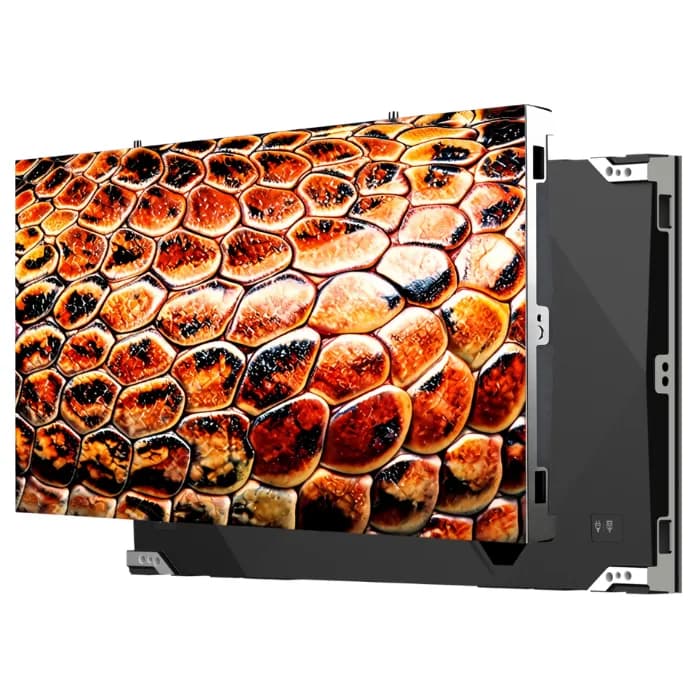

LG LSAB007 vs Planar Cobra 0.7
On measurable specs the LG LSAB007 leads 5–2. The Planar Cobra 0.7 can still be the right call where its individual wins — check the highlighted rows — match your constraints.
| Add a panel | ||
|---|---|---|
| Physical | ||
| Pixel pitch | 0.78 mm | 0.78125 mm |
| Cabinet size (W×H×D) | 600 × 338 × 45 mm | 600 × 338 × 40 mm |
| Weight per cabinet | 7.8 kg | 4.6 kg |
| Weight per m² | 38.5 kg/m² | 22.7 kg/m² |
| Image | ||
| Cabinet resolution | 768 × 432 px | 768 × 432 px |
| Pixel density | 1,638,400 px/m² | 1,638,400 px/m² |
| Brightness | 1,000 nits | 900 nits |
| Refresh rate | 3,840 Hz | 3,840 Hz |
| Contrast | — | 30,000:1 |
| Viewing angle (H/V) | 150° / 150° | 170° / 170° |
| LED type | COB | — |
| Processing depth | 20 bit | — |
| Power & thermal | ||
| Average power | 40 W | 40 W |
| Max power | 60 W | 120 W |
| Max power per m² | 296 W/m² | 593 W/m² |
| Thermal load per cabinet | 205 BTU/h | 409 BTU/h |
| Operational | ||
| Environment | Indoor | Indoor |
| IP rating (front) | IP50 | — |
| IP rating (rear) | IP20 | — |
| Operating temperature | 0 to 40 °C | 0 to 40 °C |
| Service access | — | Front |
| LED lifetime | 100,000 h | — |
| Certifications | Safety 60950-1, EMC Class B, BS476 Part7 Class1, TÜV certified, Indoor | NRTL UL/CE 62368-1 TUV Rheinland, FCC Class A, CE EN60950-1, EN 55032 Class A and EN 55035, WEEE, CISPR 32/2015 |
Size a wall with either panel
The calculator shows dimensions, power, weight and a validated wiring diagram for both — swap cabinets with one click.
